Standard gauges
ACCUD 531 Setting ring
531
This product is part of the full ACCUD range. Send an inquiry for versions, specifications and prices. We reply within 4 business days.
Versions from the catalogue 80
| Diameter d | Size difference | Roundness and cylindricity | Accuracy |
|---|---|---|---|
| Ø2~≤10 | ±3.0µm | 0.4µm | ±1.5µm |
| Ø10~≤20 | ±3.0µm | 0.5µm | ±1.5µm |
| Ø20~≤30 | ±3.0µm | 0.6µm | ±1.5µm |
| Ø30~≤50 | ±3.0µm | 0.7µm | ±1.5µm |
| Ø50~≤80 | ±3.0µm | 0.8µm | ±1.5µm |
| Ø80~≤100 | ±3.0µm | 1.0µm | ±1.5µm |
| Ø100~≤130 | ±5.0µm | 1.0µm | ±2µm |
| Ø130~≤150 | ±5.0µm | 1.2µm | ±2µm |
| Ø150~≤210 | ±5.0µm | 1.5µm | ±2µm |
| Ø210~≤250 | ±5.0µm | 2.5µm | ±2.5µm |
| Ø250~≤300 | ±5.0µm | 3.0µm | ±2.5µm |
| Code | Size(mm) | Add |
|---|---|---|
| 531-002-01 | Ø2 | + Add |
| 531-003-01 | Ø3 | + Add |
| 531-004-01 | Ø4 | + Add |
| 531-005-01 | Ø5 | + Add |
| 531-006-01 | Ø6 | + Add |
| 531-007-01 | Ø7 | + Add |
| 531-008-01 | Ø8 | + Add |
| 531-009-01 | Ø9 | + Add |
| 531-010-01 | Ø10 | + Add |
| 531-011-01 | Ø11 | + Add |
| 531-012-01 | Ø12 | + Add |
| 531-013-01 | Ø13 | + Add |
| 531-014-01 | Ø14 | + Add |
| 531-015-01 | Ø15 | + Add |
| 531-016-01 | Ø16 | + Add |
| 531-017-01 | Ø17 | + Add |
| 531-018-01 | Ø18 | + Add |
| 531-019-01 | Ø19 | + Add |
| Code | Size(mm) | Add |
|---|---|---|
| 531-020-01 | Ø20 | + Add |
| 531-021-01 | Ø21 | + Add |
| 531-022-01 | Ø22 | + Add |
| 531-023-01 | Ø23 | + Add |
| 531-024-01 | Ø24 | + Add |
| 531-025-01 | Ø25 | + Add |
| 531-026-01 | Ø26 | + Add |
| 531-027-01 | Ø27 | + Add |
| 531-028-01 | Ø28 | + Add |
| 531-029-01 | Ø29 | + Add |
| 531-030-01 | Ø30 | + Add |
| 531-031-01 | Ø31 | + Add |
| 531-032-01 | Ø32 | + Add |
| 531-033-01 | Ø33 | + Add |
| 531-034-01 | Ø34 | + Add |
| 531-035-01 | Ø35 | + Add |
| 531-036-01 | Ø36 | + Add |
| 531-037-01 | Ø37 | + Add |
| Code | Size(mm) | Add |
|---|---|---|
| 531-038-01 | Ø38 | + Add |
| 531-039-01 | Ø39 | + Add |
| 531-040-01 | Ø40 | + Add |
| 531-041-01 | Ø41 | + Add |
| 531-042-01 | Ø42 | + Add |
| 531-043-01 | Ø43 | + Add |
| 531-044-01 | Ø44 | + Add |
| 531-045-01 | Ø45 | + Add |
| 531-046-01 | Ø46 | + Add |
| 531-047-01 | Ø47 | + Add |
| 531-048-01 | Ø48 | + Add |
| 531-049-01 | Ø49 | + Add |
| 531-050-01 | Ø50 | + Add |
| 531-055-01 | Ø55 | + Add |
| 531-060-01 | Ø60 | + Add |
| 531-062-01 | Ø62 | + Add |
| 531-065-01 | Ø65 | + Add |
| 531-070-01 | Ø70 | + Add |

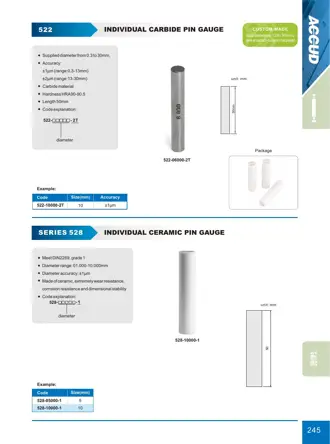

- Diameters supplied: 0.3 to 30mm
- Sizes from 13 to 30mm available on request
- Accuracy: ±1μm (0.3-13mm), ±2μm (13-30mm)
- Made of carbide
