Lathe accessories 43 product lines, 309 order codes, price on request
Every version from the GIN TECH catalogue: choose a product to see the table of order codes and dimensions, and add the codes you need to your inquiry.
Products
Filters Group Lathe Machine Accessories Live Center For Lathe
Shank / interface MT1 MT2 MT3 MT4 MT5 MT6
Clear filters

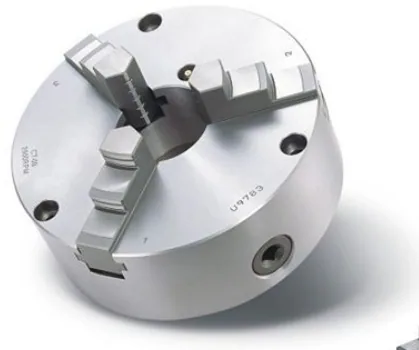

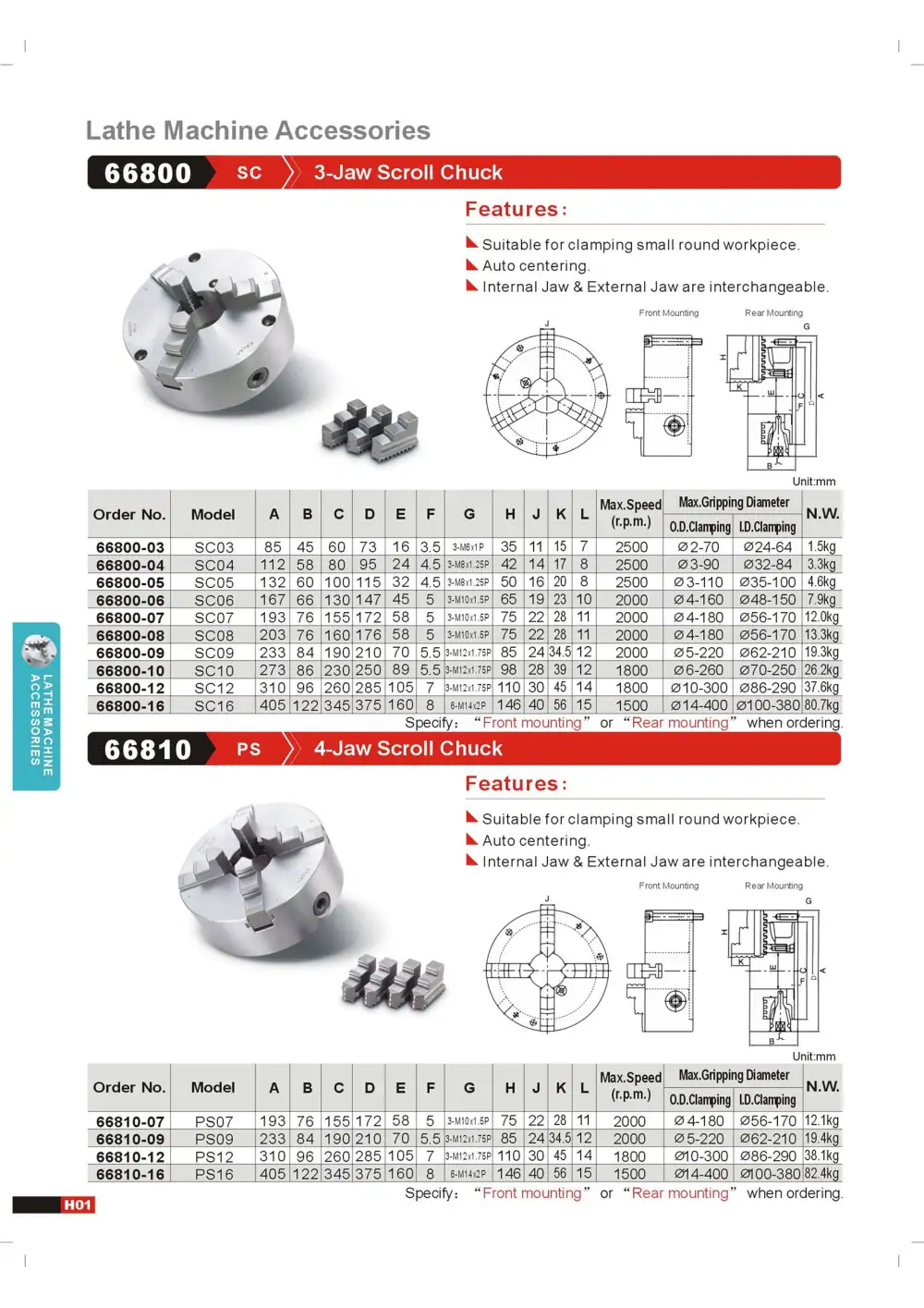

66800 3-Jaw Scroll Chuck
Type SC Versions 10 Price on request
GIN TECH 66800 3-Jaw Scroll ChuckSuitable for clamping small round workpieces. Auto centering. Internal Jaw & External Jaw are interchangeable. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66800-03 SC03 85 45 60 73 16 3.5 3-M6x1P 35 11 15 7 2500 Ø2-70 Ø24-64 1.5kg + Add 66800-04 SC04 112 58 80 95 24 4.5 3-M8x1.25P 42 14 17 8 2500 Ø3-90 Ø32-84 3.3kg + Add 66800-05 SC05 132 60 100 115 32 4.5 3-M8x1.25P 50 16 20 8 2500 Ø3-110 Ø35-100 4.6kg + Add 66800-06 SC06 167 66 130 147 45 5 3-M10x1.5P 65 19 23 10 2000 Ø4-160 Ø48-150 7.9kg + Add 66800-07 SC07 193 76 155 172 58 5 3-M10x1.5P 75 22 28 11 2000 Ø4-180 Ø56-170 12.0kg + Add 66800-08 SC08 203 76 160 176 58 5 3-M10x1.5P 75 22 28 11 2000 Ø4-180 Ø56-170 13.3kg + Add 66800-09 SC09 233 84 190 210 70 5.5 3-M12x1.75P 85 24 34.5 12 2000 Ø5-220 Ø62-210 19.3kg + Add 66800-10 SC10 273 86 230 250 89 5.5 3-M12x1.75P 98 28 39 12 1800 Ø6-260 Ø70-250 26.2kg + Add 66800-12 SC12 310 96 260 285 105 7 3-M12x1.75P 110 30 45 14 1800 Ø10-300 Ø86-290 37.6kg + Add 66800-16 SC16 405 122 345 375 160 8 6-M14x2P 146 40 56 15 1500 Ø14-400 Ø100-380 80.7kg + Add
Specify “Front mounting” or “Rear mounting” when ordering. Page 4 of the GIN TECH catalogue (PDF )

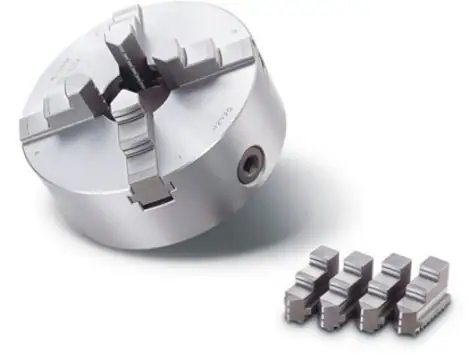

66810 4-Jaw Scroll Chuck
Type PS Versions 4 Price on request
GIN TECH 66810 4-Jaw Scroll ChuckSuitable for clamping small round workpieces. Auto centering. Internal Jaw & External Jaw are interchangeable. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66810-07 PS07 193 76 155 172 58 5 3-M10x1.5P 75 22 28 11 2000 Ø4-180 Ø56-170 12.1kg + Add 66810-09 PS09 233 84 190 210 70 5.5 3-M12x1.75P 85 24 34.5 12 2000 Ø5-220 Ø62-210 19.4kg + Add 66810-12 PS12 310 96 260 285 105 7 3-M12x1.75P 110 30 45 14 1800 Ø10-300 Ø86-290 38.1kg + Add 66810-16 PS16 405 122 345 375 160 8 6-M14x2P 146 40 56 15 1500 Ø14-400 Ø100-380 82.4kg + Add
Specify “Front mounting” or “Rear mounting” when ordering. Page 4 of the GIN TECH catalogue (PDF )

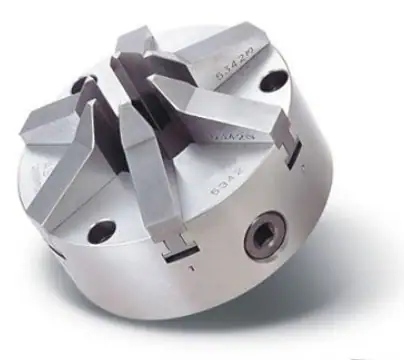

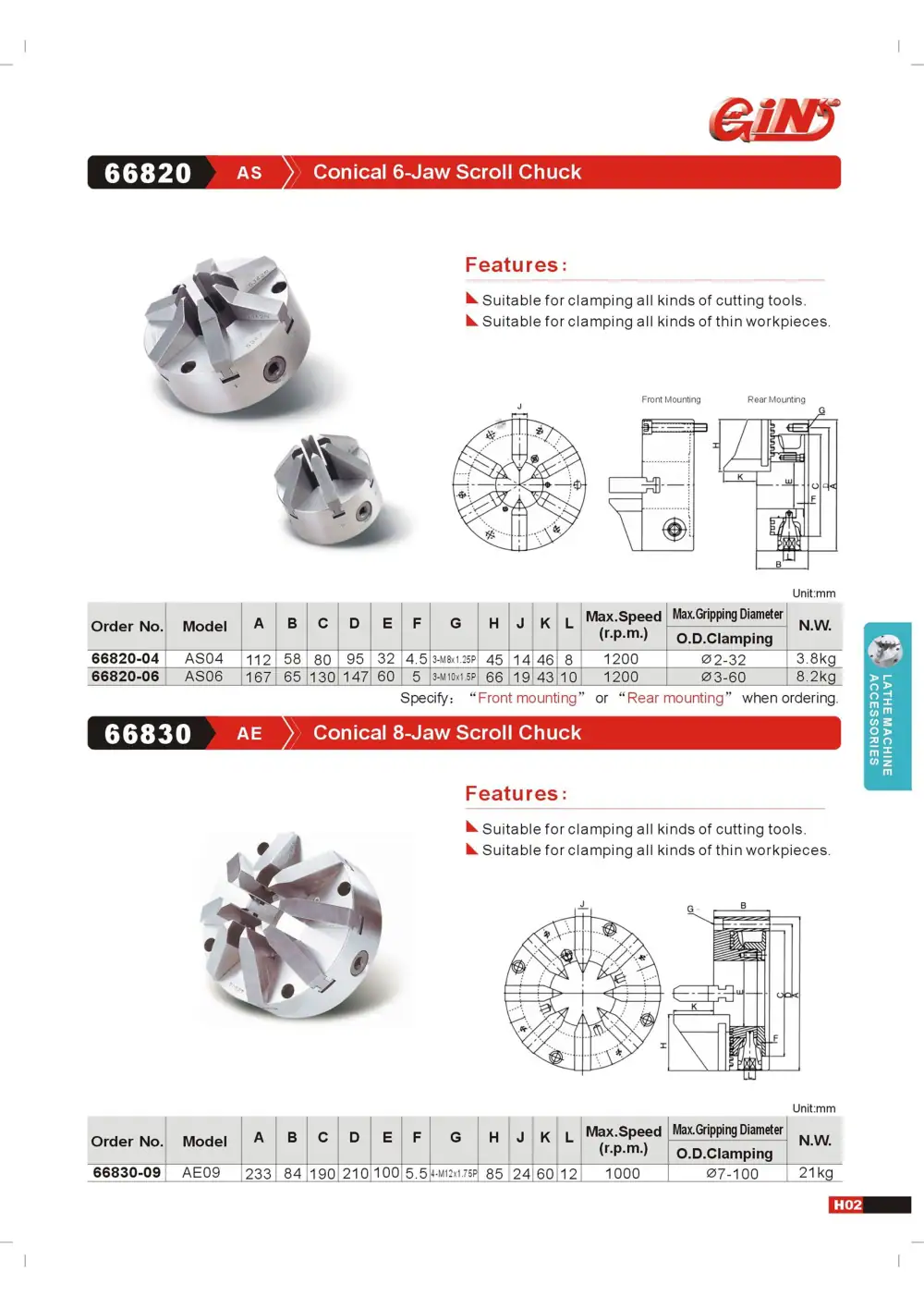

66820 Conical 6-Jaw Scroll Chuck
Type AS Versions 2 Price on request
GIN TECH 66820 Conical 6-Jaw Scroll ChuckSuitable for clamping all kinds of cutting tools. Suitable for clamping all kinds of thin workpieces. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping N.W. Add 66820-04 AS04 112 58 80 95 32 4.5 3-M8x1.25P 45 14 46 8 1200 Ø2-32 3.8kg + Add 66820-06 AS06 167 65 130 147 60 5 3-M10x1.5P 66 19 43 10 1200 Ø3-60 8.2kg + Add
Specify “Front mounting” or “Rear mounting” when ordering. Page 5 of the GIN TECH catalogue (PDF )

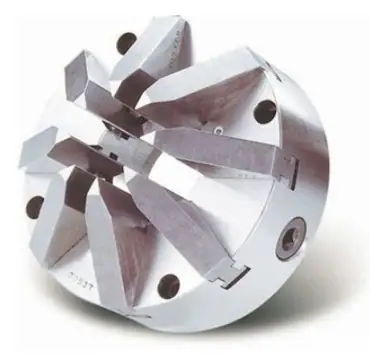

66830 Conical 8-Jaw Scroll Chuck
Type AE Versions 1 Price on request
GIN TECH 66830 Conical 8-Jaw Scroll ChuckSuitable for clamping all kinds of cutting tools. Suitable for clamping all kinds of thin workpieces. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping N.W. Add 66830-09 AE09 233 84 190 210 100 5.5 4-M12x1.75P 85 24 60 12 1000 Ø7-100 21kg + Add
Page 5 of the GIN TECH catalogue (PDF )

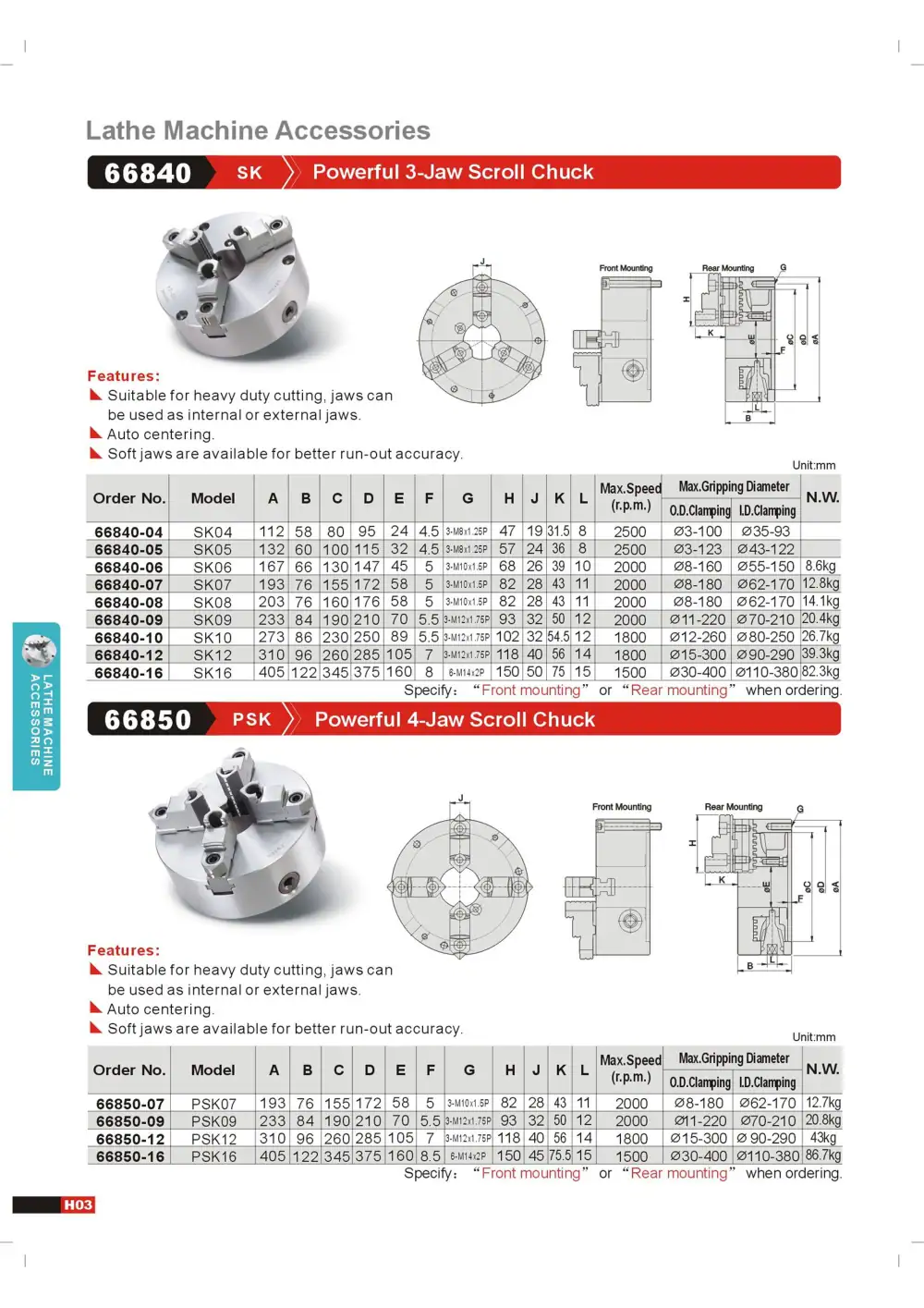

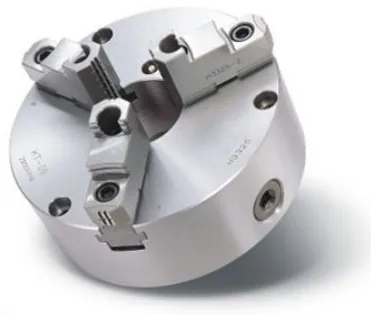

66840 Powerful 3-Jaw Scroll Chuck
Type SK Versions 9 Price on request
GIN TECH 66840 Powerful 3-Jaw Scroll ChuckSuitable for heavy duty cutting, jaws can be used as internal or external jaws. Auto centering. Soft jaws are available for better run-out accuracy. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66840-04 SK04 112 58 80 95 24 4.5 3-M8x1.25P 47 19 31.5 8 2500 Ø3-100 Ø35-93 + Add 66840-05 SK05 132 60 100 115 32 4.5 3-M8x1.25P 57 24 36 8 2500 Ø3-123 Ø43-122 + Add 66840-06 SK06 167 66 130 147 45 5 3-M10x1.5P 68 26 39 10 2000 Ø8-160 Ø55-150 8.6kg + Add 66840-07 SK07 193 76 155 172 58 5 3-M10x1.5P 82 28 43 11 2000 Ø8-180 Ø62-170 12.8kg + Add 66840-08 SK08 203 76 160 176 58 5 3-M10x1.5P 82 28 43 11 2000 Ø8-180 Ø62-170 14.1kg + Add 66840-09 SK09 233 84 190 210 70 5.5 3-M12x1.75P 93 32 50 12 2000 Ø11-220 Ø70-210 20.4kg + Add 66840-10 SK10 273 86 230 250 89 5.5 3-M12x1.75P 102 32 54.5 12 1800 Ø12-260 Ø80-250 26.7kg + Add 66840-12 SK12 310 96 260 285 105 7 3-M12x1.75P 118 40 56 14 1800 Ø15-300 Ø90-290 39.3kg + Add 66840-16 SK16 405 122 345 375 160 8 6-M14x2P 150 50 75 15 1500 Ø30-400 Ø110-380 82.3kg + Add
Specify “Front mounting” or “Rear mounting” when ordering. Page 6 of the GIN TECH catalogue (PDF )

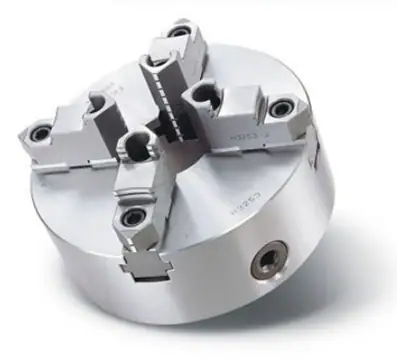

66850 Powerful 4-Jaw Scroll Chuck
Type PSK Versions 4 Price on request
GIN TECH 66850 Powerful 4-Jaw Scroll ChuckSuitable for heavy duty cutting, jaws can be used as internal or external jaws. Auto centering. Soft jaws are available for better run-out accuracy. (dimensions in mm)
Order No. Model A B C D E F G H J K L Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66850-07 PSK07 193 76 155 172 58 5 3-M10x1.5P 82 28 43 11 2000 Ø8-180 Ø62-170 12.7kg + Add 66850-09 PSK09 233 84 190 210 70 5.5 3-M12x1.75P 93 32 50 12 2000 Ø11-220 Ø70-210 20.8kg + Add 66850-12 PSK12 310 96 260 285 105 7 3-M12x1.75P 118 40 56 14 1800 Ø15-300 Ø 90-290 43kg + Add 66850-16 PSK16 405 122 345 375 160 8.5 6-M14x2P 150 45 75.5 15 1500 Ø30-400 Ø110-380 86.7kg + Add
Specify “Front mounting” or “Rear mounting” when ordering. Page 6 of the GIN TECH catalogue (PDF )

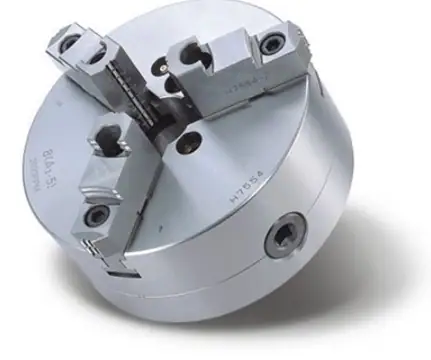

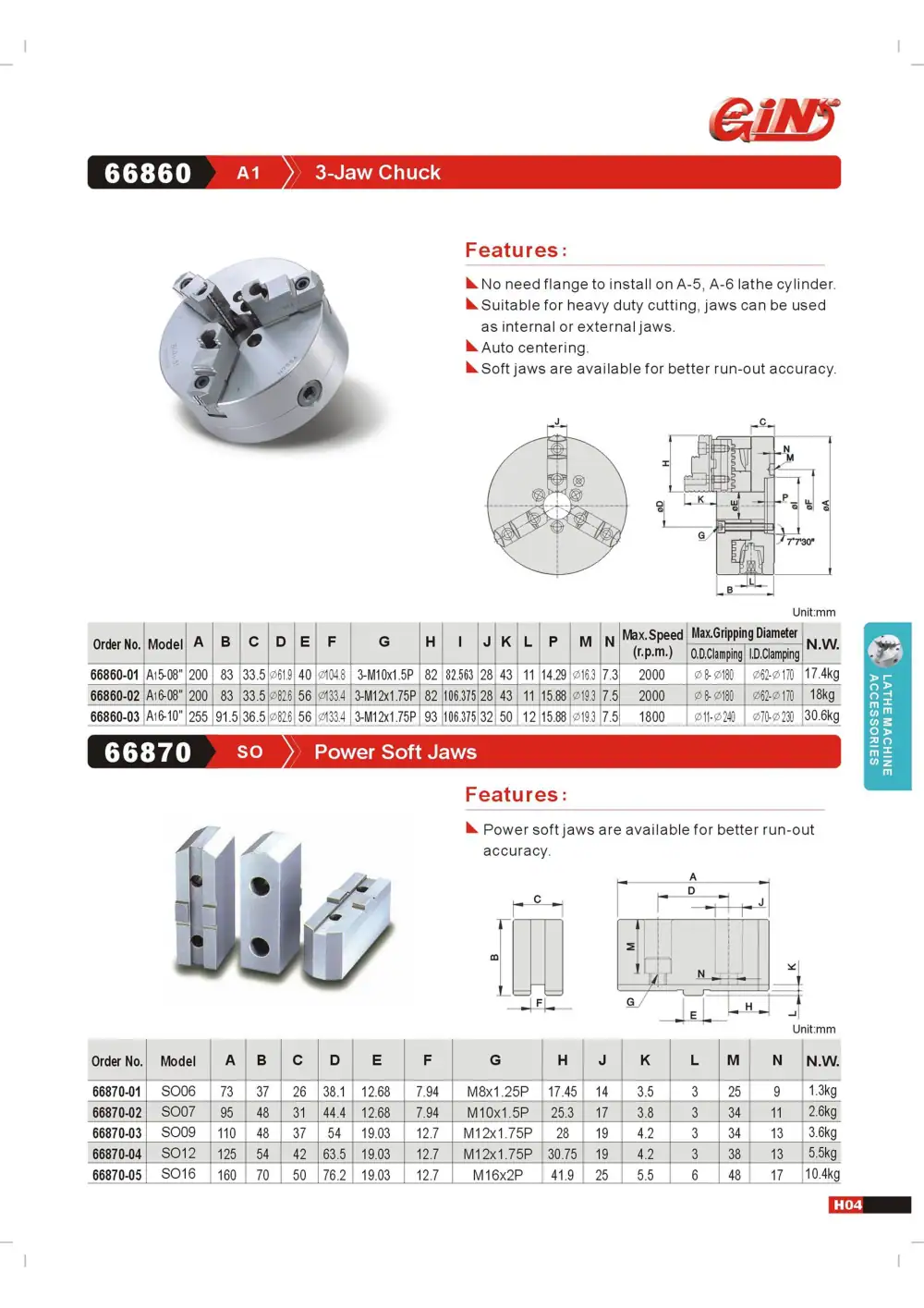

66860 3-Jaw Chuck
Type A1 Versions 3 Price on request
GIN TECH 66860 3-Jaw ChuckNo flange needed to install on A-5, A-6 lathe cylinder. Suitable for heavy duty cutting, jaws can be used as internal or external jaws. Auto centering. Soft jaws are available for better run-out accuracy. (dimensions in mm)
Order No. Model A B C D E F G H I J K L P M N Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66860-01 A15-08" 200 83 33.5 Ø61.9 40 Ø104.8 3-M10x1.5P 82 82.563 28 43 11 14.29 Ø16.3 7.3 2000 Ø8-Ø180 Ø62-Ø170 17.4kg + Add 66860-02 A16-08" 200 83 33.5 Ø82.6 56 Ø133.4 3-M12x1.75P 82 106.375 28 43 11 15.88 Ø19.3 7.5 2000 Ø8-Ø180 Ø62-Ø170 18kg + Add 66860-03 A16-10" 255 91.5 36.5 Ø82.6 56 Ø133.4 3-M12x1.75P 93 106.375 32 50 12 15.88 Ø19.3 7.5 1800 Ø11-Ø240 Ø70-Ø230 30.6kg + Add
Page 7 of the GIN TECH catalogue (PDF )

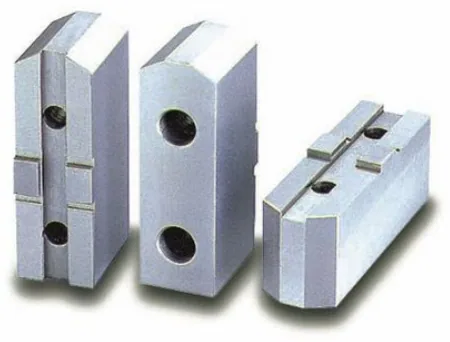

66870 Power Soft Jaws
Type SO Versions 5 Price on request
GIN TECH 66870 Power Soft JawsPower soft jaws are available for better run-out accuracy. (dimensions in mm)
Order No. Model A B C D E F G H J K L M N N.W. Add 66870-01 SO06 73 37 26 38.1 12.68 7.94 M8x1.25P 17.45 14 3.5 3 25 9 1.3kg + Add 66870-02 SO07 95 48 31 44.4 12.68 7.94 M10x1.5P 25.3 17 3.8 3 34 11 2.6kg + Add 66870-03 SO09 110 48 37 54 19.03 12.7 M12x1.75P 28 19 4.2 3 34 13 3.6kg + Add 66870-04 SO12 125 54 42 63.5 19.03 12.7 M12x1.75P 30.75 19 4.2 3 38 13 5.5kg + Add 66870-05 SO16 160 70 50 76.2 19.03 12.7 M16x2P 41.9 25 5.5 6 48 17 10.4kg + Add
Page 7 of the GIN TECH catalogue (PDF )

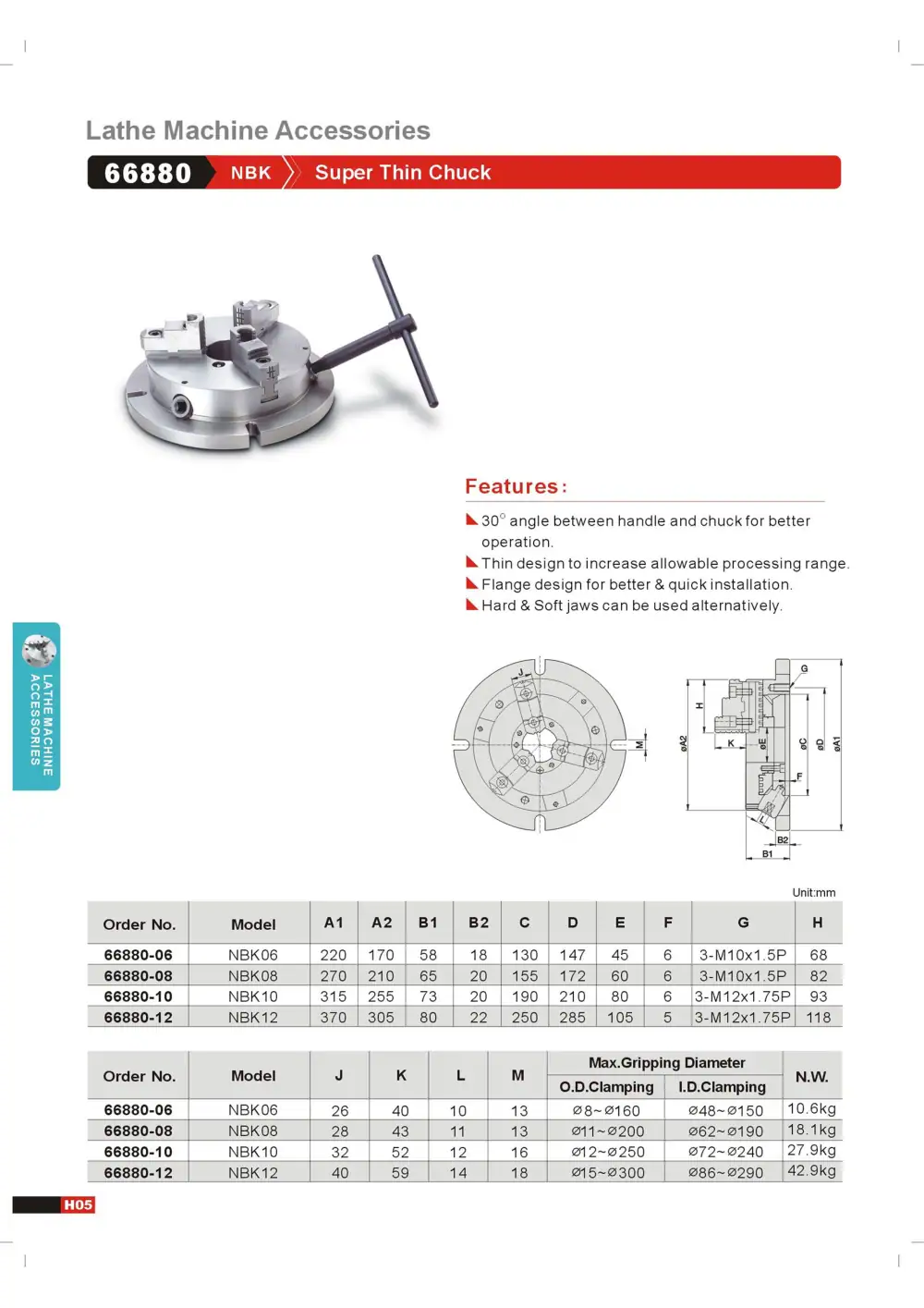

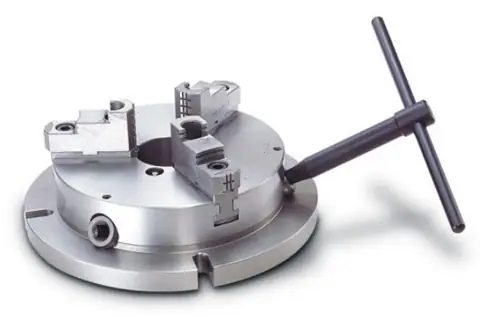

66880 Super Thin Chuck
Type NBK Versions 4 Price on request
GIN TECH 66880 Super Thin Chuck30° angle between handle and chuck for better operation. Thin design to increase allowable processing range. Flange design for better and quicker installation. Hard & Soft jaws can be used alternately. (dimensions in mm)
Order No. Model A1 A2 B1 B2 C D E F G H Add 66880-06 NBK06 220 170 58 18 130 147 45 6 3-M10x1.5P 68 + Add 66880-08 NBK08 270 210 65 20 155 172 60 6 3-M10x1.5P 82 + Add 66880-10 NBK10 315 255 73 20 190 210 80 6 3-M12x1.75P 93 + Add 66880-12 NBK12 370 305 80 22 250 285 105 5 3-M12x1.75P 118 + Add
(dimensions in mm)
Order No. Model J K L M Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66880-06 NBK06 26 40 10 13 Ø8~Ø160 Ø48~Ø150 10.6kg + Add 66880-08 NBK08 28 43 11 13 Ø11~Ø200 Ø62~Ø190 18.1kg + Add 66880-10 NBK10 32 52 12 16 Ø12~Ø250 Ø72~Ø240 27.9kg + Add 66880-12 NBK12 40 59 14 18 Ø15~Ø300 Ø86~Ø290 42.9kg + Add
Page 8 of the GIN TECH catalogue (PDF )

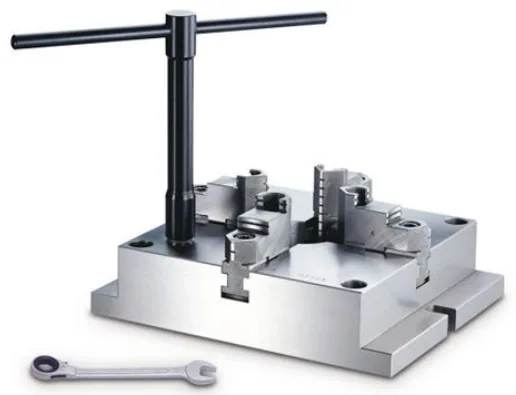

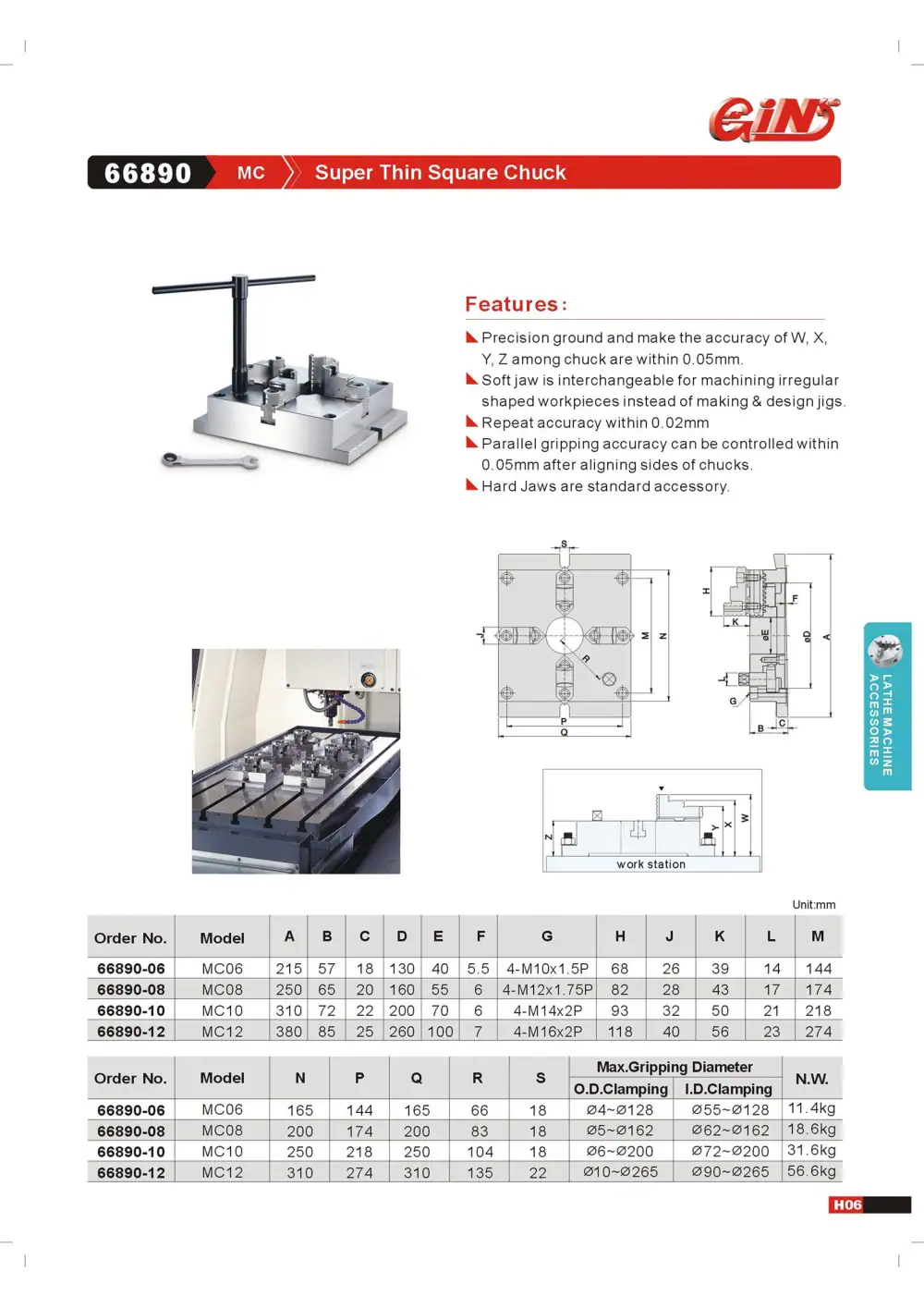

66890 Super Thin Square Chuck
Type MC Versions 4 Price on request
GIN TECH 66890 Super Thin Square ChuckPrecision ground, making the accuracy of W, X, Y, Z among the chucks within 0.05mm. Soft jaws are interchangeable for machining irregularly shaped workpieces instead of making and designing jigs. Repeat accuracy within 0.02mm Parallel gripping accuracy can be controlled within 0.05mm after aligning sides of chucks. Hard Jaws are standard accessory. (dimensions in mm)
Order No. Model A B C D E F G H J K L M Add 66890-06 MC06 215 57 18 130 40 5.5 4-M10x1.5P 68 26 39 14 144 + Add 66890-08 MC08 250 65 20 160 55 6 4-M12x1.75P 82 28 43 17 174 + Add 66890-10 MC10 310 72 22 200 70 6 4-M14x2P 93 32 50 21 218 + Add 66890-12 MC12 380 85 25 260 100 7 4-M16x2P 118 40 56 23 274 + Add
(dimensions in mm)
Order No. Model N P Q R S Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66890-06 MC06 165 144 165 66 18 Ø4~Ø128 Ø55~Ø128 11.4kg + Add 66890-08 MC08 200 174 200 83 18 Ø5~Ø162 Ø62~Ø162 18.6kg + Add 66890-10 MC10 250 218 250 104 18 Ø6~Ø200 Ø72~Ø200 31.6kg + Add 66890-12 MC12 310 274 310 135 22 Ø10~Ø265 Ø90~Ø265 56.6kg + Add
Page 9 of the GIN TECH catalogue (PDF )

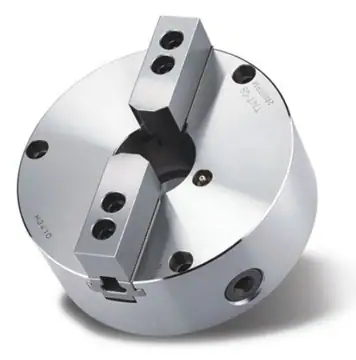

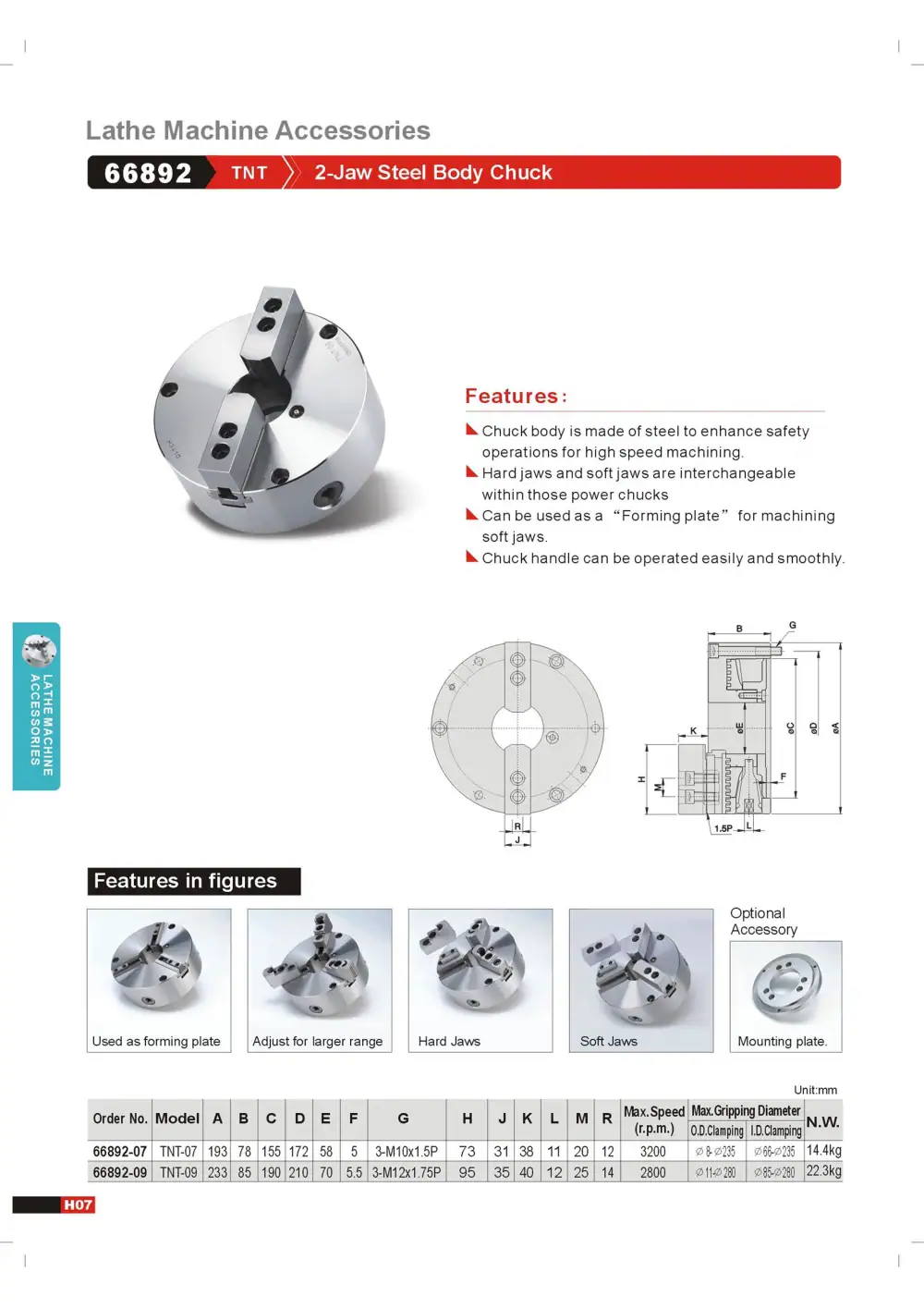

66892 2-Jaw Steel Body Chuck
Type TNT Versions 2 Price on request
GIN TECH 66892 2-Jaw Steel Body ChuckChuck body is made of steel to enhance safety operations for high speed machining. Hard jaws and soft jaws are interchangeable within those power chucks Can be used as a "Forming plate" for machining soft jaws. Chuck handle can be operated easily and smoothly. (dimensions in mm)
Order No. Model A B C D E F G H J K L M R Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66892-07 TNT-07 193 78 155 172 58 5 3-M10x1.5P 73 31 38 11 20 12 3200 Ø8-Ø235 Ø66-Ø235 14.4kg + Add 66892-09 TNT-09 233 85 190 210 70 5.5 3-M12x1.75P 95 35 40 12 25 14 2800 Ø11-Ø280 Ø85-Ø280 22.3kg + Add
Page 10 of the GIN TECH catalogue (PDF )

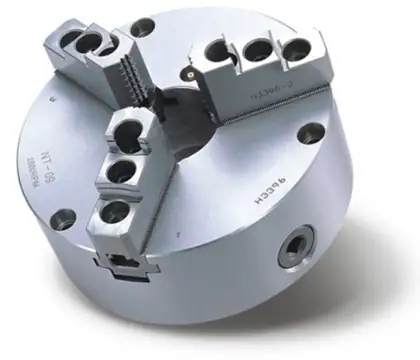

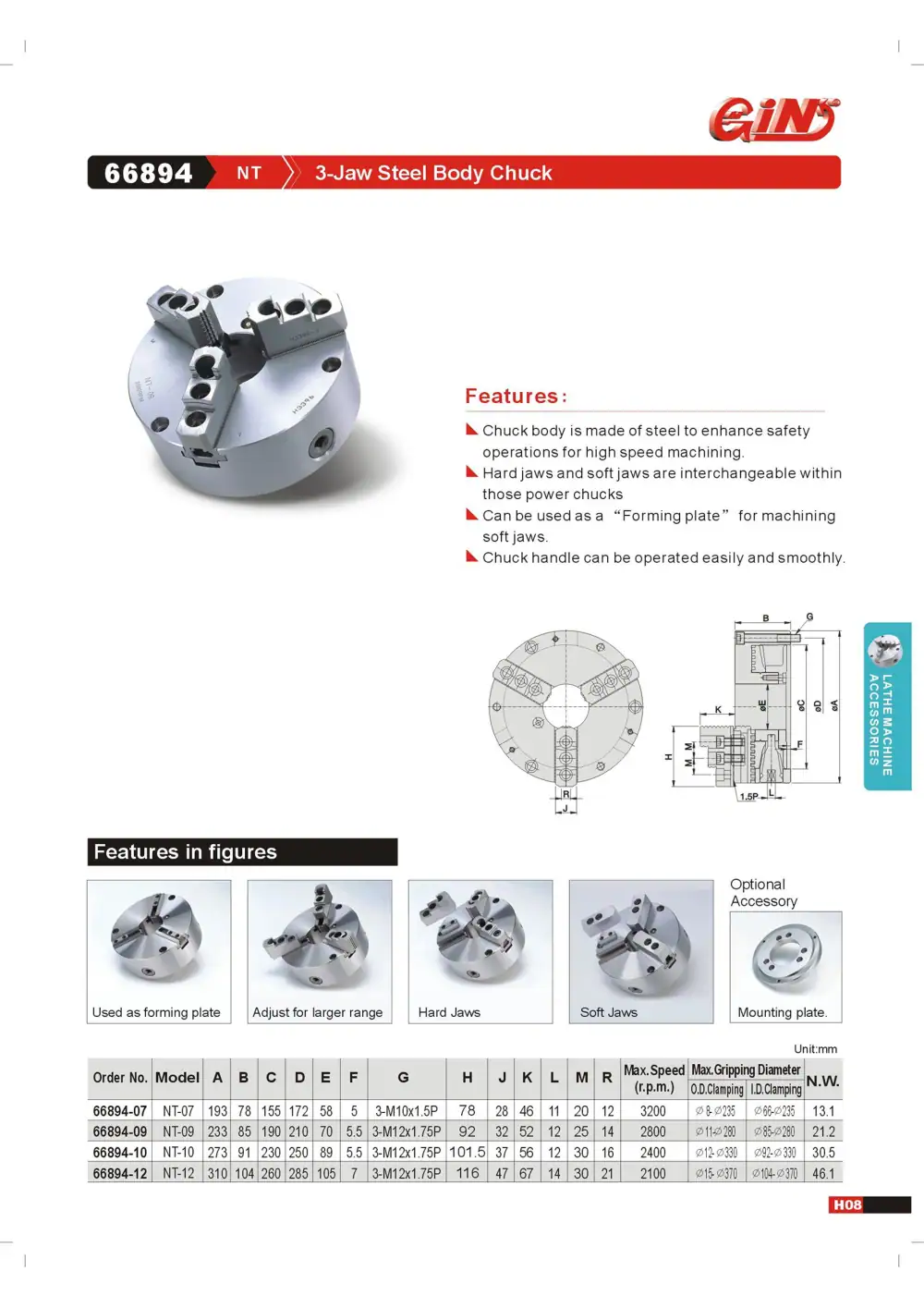

66894 3-Jaw Steel Body Chuck
Type NT Versions 4 Price on request
GIN TECH 66894 3-Jaw Steel Body ChuckChuck body is made of steel to enhance safety operations for high speed machining. Hard jaws and soft jaws are interchangeable within those power chucks Can be used as a "Forming plate" for machining soft jaws. Chuck handle can be operated easily and smoothly. (dimensions in mm)
Order No. Model A B C D E F G H J K L M R Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66894-07 NT-07 193 78 155 172 58 5 3-M10x1.5P 78 28 46 11 20 12 3200 Ø8-Ø235 Ø66-Ø235 13.1 + Add 66894-09 NT-09 233 85 190 210 70 5.5 3-M12x1.75P 92 32 52 12 25 14 2800 Ø11-Ø280 Ø85-Ø280 21.2 + Add 66894-10 NT-10 273 91 230 250 89 5.5 3-M12x1.75P 101.5 37 56 12 30 16 2400 Ø12-Ø330 Ø92-Ø330 30.5 + Add 66894-12 NT-12 310 104 260 285 105 7 3-M12x1.75P 116 47 67 14 30 21 2100 Ø15-Ø370 Ø104-Ø370 46.1 + Add
Page 11 of the GIN TECH catalogue (PDF )

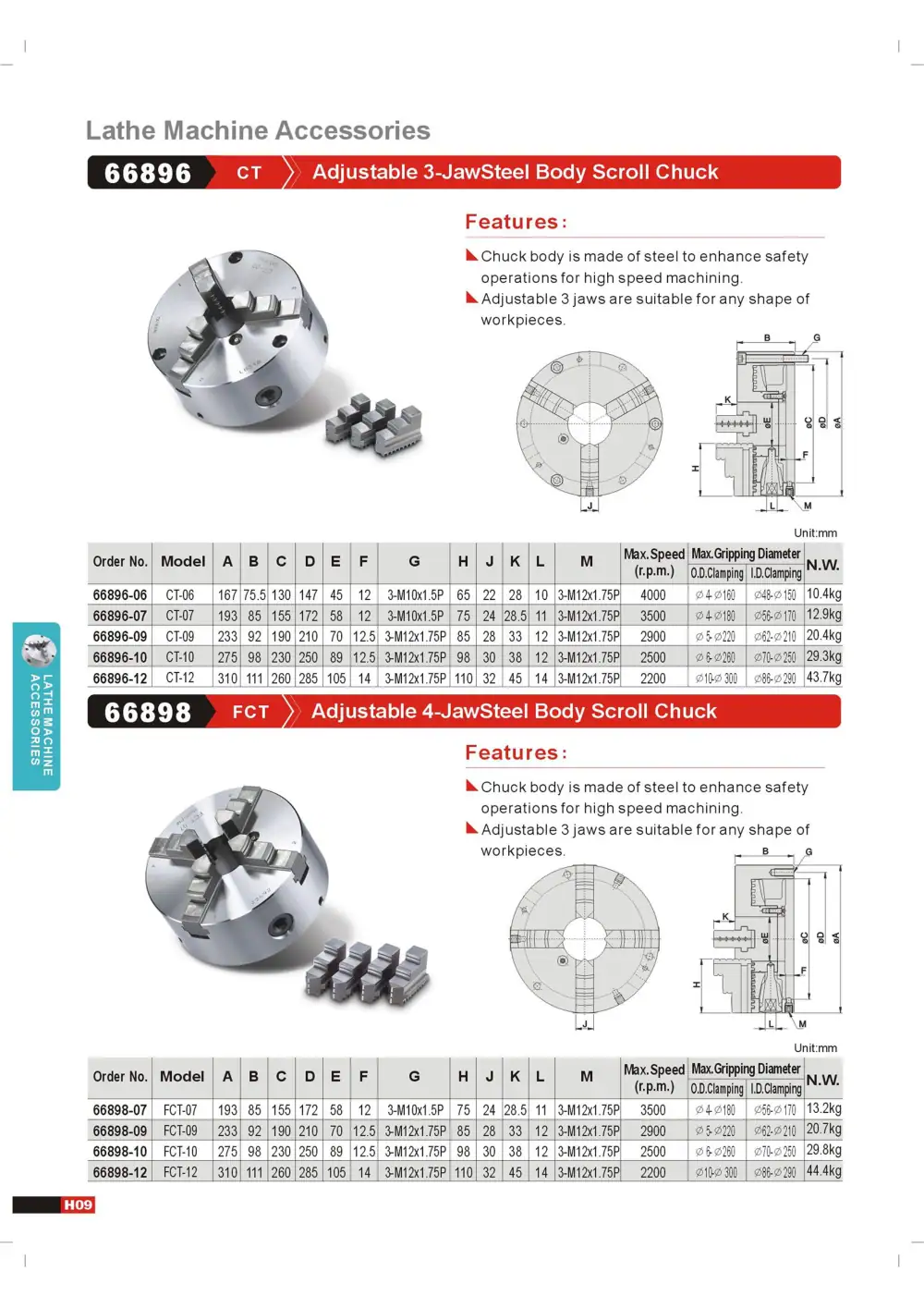

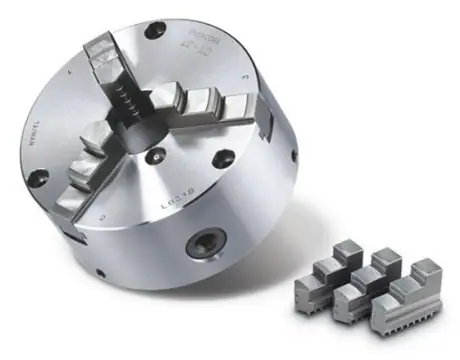

66896 Adjustable 3-Jaw Steel Body Scroll Chuck
Type CT Versions 5 Price on request
GIN TECH 66896 Adjustable 3-Jaw Steel Body Scroll ChuckChuck body is made of steel to enhance safety operations for high speed machining. Adjustable 3 jaws are suitable for any shape of workpieces. (dimensions in mm)
Order No. Model A B C D E F G H J K L M Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66896-06 CT-06 167 75.5 130 147 45 12 3-M10x1.5P 65 22 28 10 3-M12x1.75P 4000 Ø4-Ø160 Ø48-Ø150 10.4kg + Add 66896-07 CT-07 193 85 155 172 58 12 3-M10x1.5P 75 24 28.5 11 3-M12x1.75P 3500 Ø4-Ø180 Ø56-Ø170 12.9kg + Add 66896-09 CT-09 233 92 190 210 70 12.5 3-M12x1.75P 85 28 33 12 3-M12x1.75P 2900 Ø5-Ø220 Ø62-Ø210 20.4kg + Add 66896-10 CT-10 275 98 230 250 89 12.5 3-M12x1.75P 98 30 38 12 3-M12x1.75P 2500 Ø6-Ø260 Ø70-Ø250 29.3kg + Add 66896-12 CT-12 310 111 260 285 105 14 3-M12x1.75P 110 32 45 14 3-M12x1.75P 2200 Ø10-Ø300 Ø86-Ø290 43.7kg + Add
Page 12 of the GIN TECH catalogue (PDF )

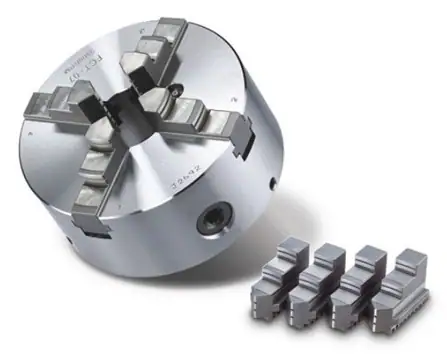

66898 Adjustable 4-Jaw Steel Body Scroll Chuck
Type FCT Versions 4 Price on request
GIN TECH 66898 Adjustable 4-Jaw Steel Body Scroll ChuckChuck body is made of steel to enhance safety operations for high speed machining. Adjustable 3 jaws are suitable for any shape of workpieces. (dimensions in mm)
Order No. Model A B C D E F G H J K L M Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66898-07 FCT-07 193 85 155 172 58 12 3-M10x1.5P 75 24 28.5 11 3-M12x1.75P 3500 Ø4-Ø180 Ø56-Ø170 13.2kg + Add 66898-09 FCT-09 233 92 190 210 70 12.5 3-M12x1.75P 85 28 33 12 3-M12x1.75P 2900 Ø5-Ø220 Ø62-Ø210 20.7kg + Add 66898-10 FCT-10 275 98 230 250 89 12.5 3-M12x1.75P 98 30 38 12 3-M12x1.75P 2500 Ø6-Ø260 Ø70-Ø250 29.8kg + Add 66898-12 FCT-12 310 111 260 285 105 14 3-M12x1.75P 110 32 45 14 3-M12x1.75P 2200 Ø10-Ø300 Ø86-Ø290 44.4kg + Add
Page 12 of the GIN TECH catalogue (PDF )

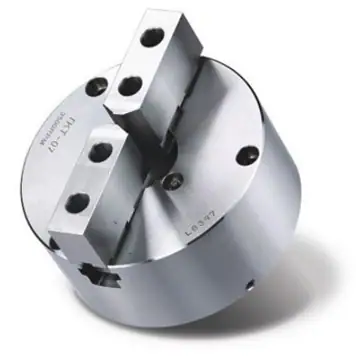

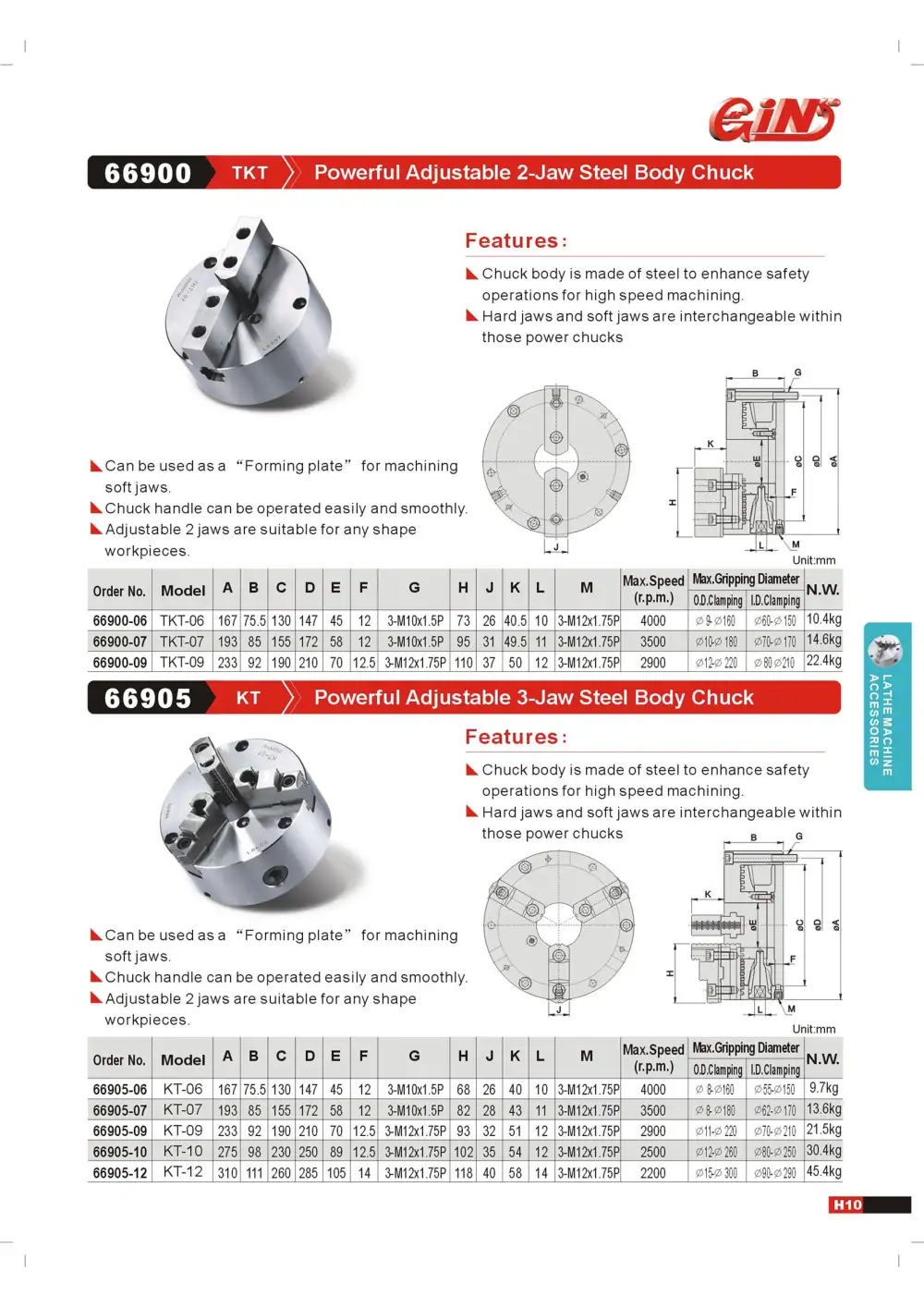

66900 Powerful Adjustable 2-Jaw Steel Body Chuck
Type TKT Versions 3 Price on request
GIN TECH 66900 Powerful Adjustable 2-Jaw Steel Body ChuckChuck body is made of steel to enhance safety operations for high speed machining. Hard jaws and soft jaws are interchangeable within those power chucks Can be used as a "Forming plate" for machining soft jaws. Chuck handle can be operated easily and smoothly. Adjustable 2 jaws are suitable for workpieces of any shape. (dimensions in mm)
Order No. Model A B C D E F G H J K L M Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66900-06 TKT-06 167 75.5 130 147 45 12 3-M10x1.5P 73 26 40.5 10 3-M12x1.75P 4000 Ø9-Ø160 Ø60-Ø150 10.4kg + Add 66900-07 TKT-07 193 85 155 172 58 12 3-M10x1.5P 95 31 49.5 11 3-M12x1.75P 3500 Ø10-Ø180 Ø70-Ø170 14.6kg + Add 66900-09 TKT-09 233 92 190 210 70 12.5 3-M12x1.75P 110 37 50 12 3-M12x1.75P 2900 Ø12-Ø220 Ø80 Ø210 22.4kg + Add
Page 13 of the GIN TECH catalogue (PDF )

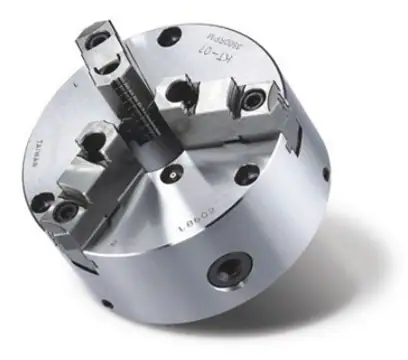

66905 Powerful Adjustable 3-Jaw Steel Body Chuck
Type KT Versions 5 Price on request
GIN TECH 66905 Powerful Adjustable 3-Jaw Steel Body ChuckChuck body is made of steel to enhance safety operations for high speed machining. Hard jaws and soft jaws are interchangeable within those power chucks Can be used as a "Forming plate" for machining soft jaws. Chuck handle can be operated easily and smoothly. Adjustable 2 jaws are suitable for workpieces of any shape. (dimensions in mm)
Order No. Model A B C D E F G H J K L M Max. Speed (r.p.m.) Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66905-06 KT-06 167 75.5 130 147 45 12 3-M10x1.5P 68 26 40 10 3-M12x1.75P 4000 Ø8-Ø160 Ø55-Ø150 9.7kg + Add 66905-07 KT-07 193 85 155 172 58 12 3-M10x1.5P 82 28 43 11 3-M12x1.75P 3500 Ø8-Ø180 Ø62-Ø170 13.6kg + Add 66905-09 KT-09 233 92 190 210 70 12.5 3-M12x1.75P 93 32 51 12 3-M12x1.75P 2900 Ø11-Ø220 Ø70-Ø210 21.5kg + Add 66905-10 KT-10 275 98 230 250 89 12.5 3-M12x1.75P 102 35 54 12 3-M12x1.75P 2500 Ø12-Ø260 Ø80-Ø250 30.4kg + Add 66905-12 KT-12 310 111 260 285 105 14 3-M12x1.75P 118 40 58 14 3-M12x1.75P 2200 Ø15-Ø300 Ø90-Ø290 45.4kg + Add
Page 13 of the GIN TECH catalogue (PDF )

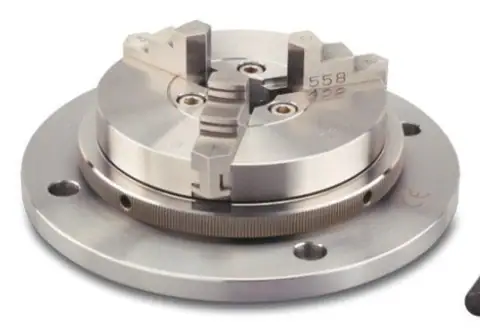

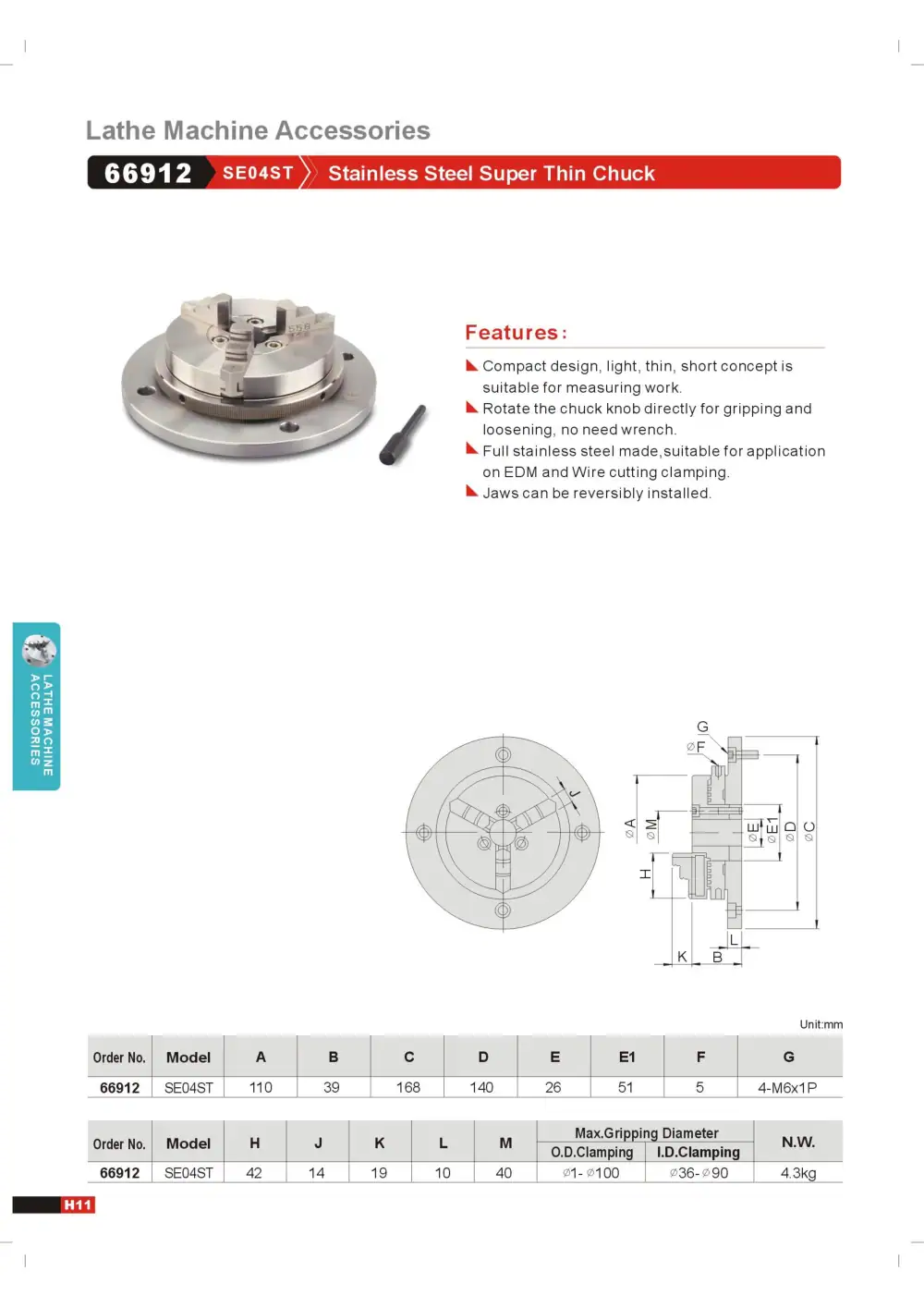

66912 Stainless Steel Super Thin Chuck
Type SE04ST Versions 1 Price on request
GIN TECH 66912 Stainless Steel Super Thin ChuckCompact design, light, thin, short concept is suitable for measuring work. Rotate the chuck knob directly for gripping and loosening, no wrench needed. Made entirely of stainless steel, suitable for application on EDM and wire cutting clamping. Jaws can be reversibly installed. (dimensions in mm)
Order No. Model A B C D E E1 F G Add 66912 SE04ST 110 39 168 140 26 51 5 4-M6x1P + Add
(dimensions in mm)
Order No. Model H J K L M Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66912 SE04ST 42 14 19 10 40 Ø1-Ø100 Ø36-Ø90 4.3kg + Add
Page 14 of the GIN TECH catalogue (PDF )

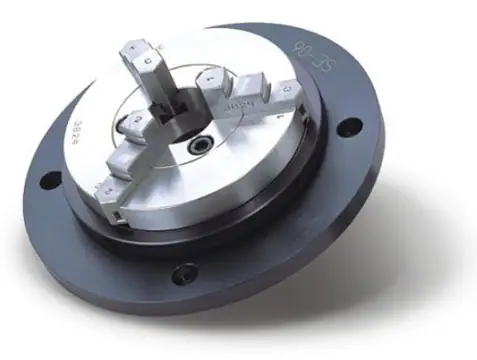

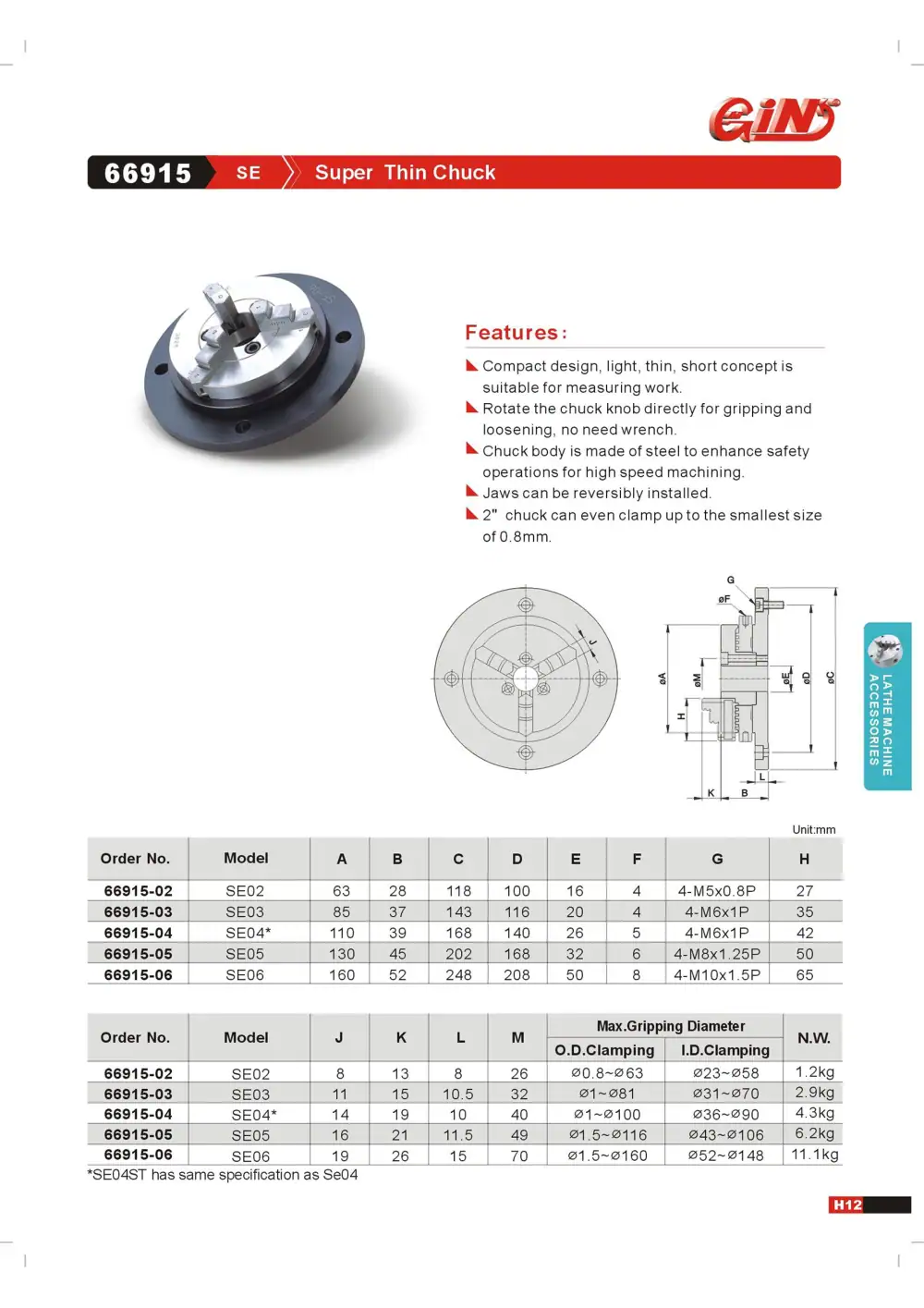

66915 Super Thin Chuck
Type SE Versions 5 Price on request
GIN TECH 66915 Super Thin ChuckCompact design, light, thin, short concept is suitable for measuring work. Rotate the chuck knob directly for gripping and loosening, no wrench needed. Chuck body is made of steel to enhance safety operations for high speed machining. Jaws can be reversibly installed. 2" chuck can even clamp up to the smallest size of 0.8mm. (dimensions in mm)
Order No. Model A B C D E F G H Add 66915-02 SE02 63 28 118 100 16 4 4-M5x0.8P 27 + Add 66915-03 SE03 85 37 143 116 20 4 4-M6x1P 35 + Add 66915-04 SE04* 110 39 168 140 26 5 4-M6x1P 42 + Add 66915-05 SE05 130 45 202 168 32 6 4-M8x1.25P 50 + Add 66915-06 SE06 160 52 248 208 50 8 4-M10x1.5P 65 + Add
(dimensions in mm)
Order No. Model J K L M Max. Gripping Diameter O.D. Clamping Max. Gripping Diameter I.D. Clamping N.W. Add 66915-02 SE02 8 13 8 26 Ø0.8~Ø63 Ø23~Ø58 1.2kg + Add 66915-03 SE03 11 15 10.5 32 Ø1~Ø81 Ø31~Ø70 2.9kg + Add 66915-04 SE04* 14 19 10 40 Ø1~Ø100 Ø36~Ø90 4.3kg + Add 66915-05 SE05 16 21 11.5 49 Ø1.5~Ø116 Ø43~Ø106 6.2kg + Add 66915-06 SE06 19 26 15 70 Ø1.5~Ø160 Ø52~Ø148 11.1kg + Add
*SE04ST has the same specification as Se04 Page 15 of the GIN TECH catalogue (PDF )

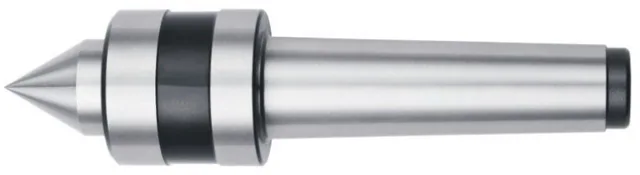

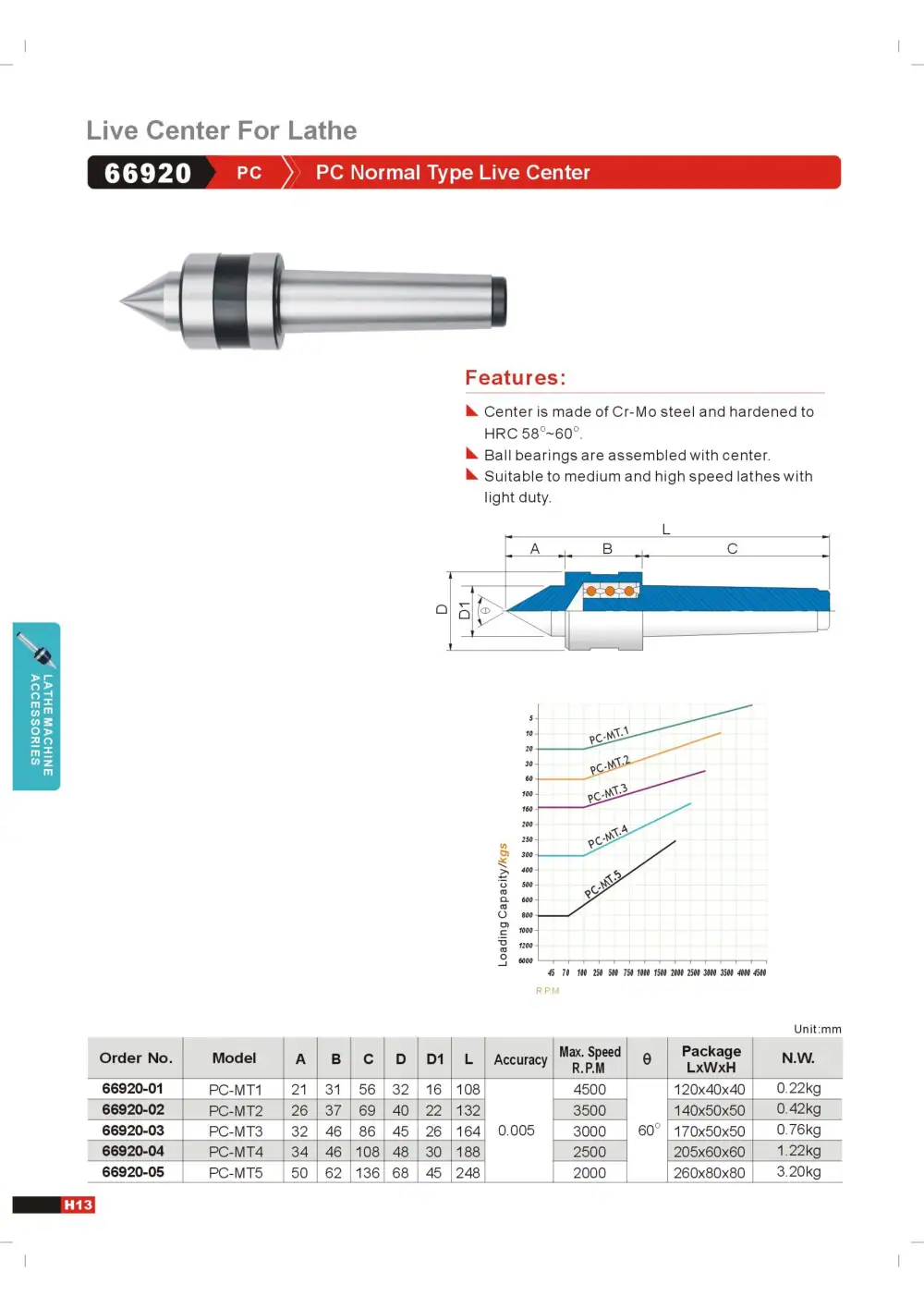

66920 PC Normal Type Live Center
Type PC Versions 5 Interface MT1, MT2, MT3 Price on request
GIN TECH 66920 PC Normal Type Live CenterCenter is made of Cr-Mo steel and hardened to HRC 58°~60°. Ball bearings are assembled with center. Suitable for medium and high speed lathes with light duty. (dimensions in mm)
Order No. Model A B C D D1 L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66920-01 PC-MT1 21 31 56 32 16 108 0.005 4500 60° 120x40x40 0.22kg + Add 66920-02 PC-MT2 26 37 69 40 22 132 0.005 3500 60° 140x50x50 0.42kg + Add 66920-03 PC-MT3 32 46 86 45 26 164 0.005 3000 60° 170x50x50 0.76kg + Add 66920-04 PC-MT4 34 46 108 48 30 188 0.005 2500 60° 205x60x60 1.22kg + Add 66920-05 PC-MT5 50 62 136 68 45 248 0.005 2000 60° 260x80x80 3.20kg + Add
Page 16 of the GIN TECH catalogue (PDF )

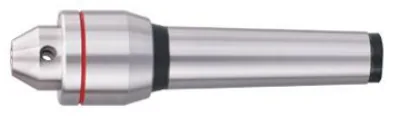

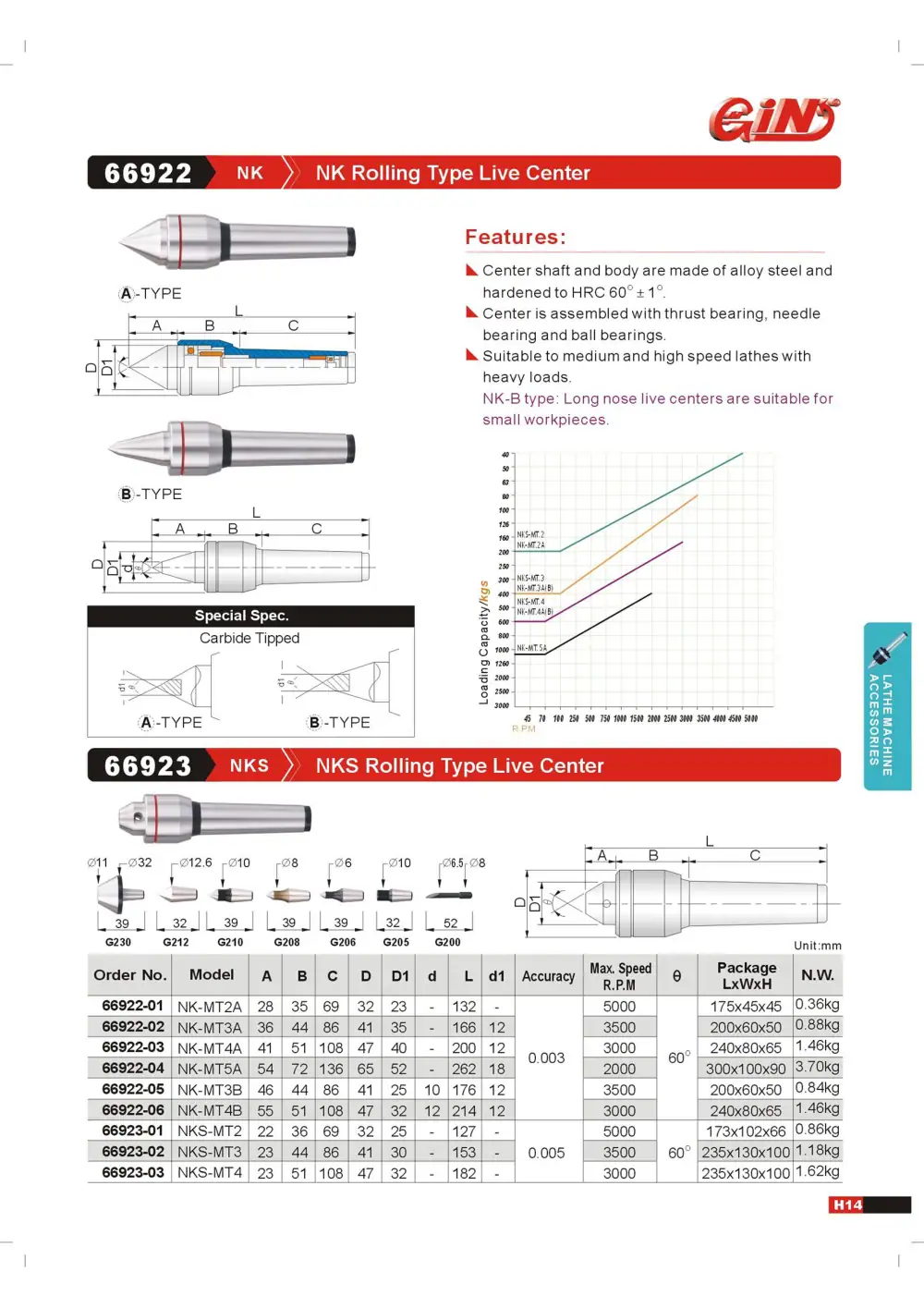

66923 NKS Rolling Type Live Center
Type NKS Versions 9 Interface MT2, MT3, MT4 Price on request
GIN TECH 66923 NKS Rolling Type Live CenterModel Ø L G230 Ø11, Ø32 39 G212 Ø12.6 32 G210 Ø10 39 G208 Ø8 39 G206 Ø6 39 G205 Ø10 32 G200 Ø6.5, Ø8 52
(dimensions in mm)
Order No. Model A B C D D1 d L d1 Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66922-01 NK-MT2A 28 35 69 32 23 - 132 - 0.003 5000 60° 175x45x45 0.36kg + Add 66922-02 NK-MT3A 36 44 86 41 35 - 166 12 0.003 3500 60° 200x60x50 0.88kg + Add 66922-03 NK-MT4A 41 51 108 47 40 - 200 12 0.003 3000 60° 240x80x65 1.46kg + Add 66922-04 NK-MT5A 54 72 136 65 52 - 262 18 0.003 2000 60° 300x100x90 3.70kg + Add 66922-05 NK-MT3B 46 44 86 41 25 10 176 12 0.003 3500 60° 200x60x50 0.84kg + Add 66922-06 NK-MT4B 55 51 108 47 32 12 214 12 0.003 3000 60° 240x80x65 1.46kg + Add 66923-01 NKS-MT2 22 36 69 32 25 - 127 - 0.005 5000 60° 173x102x66 0.86kg + Add 66923-02 NKS-MT3 23 44 86 41 30 - 153 - 0.005 3500 60° 235x130x100 1.18kg + Add 66923-03 NKS-MT4 23 51 108 47 32 - 182 - 0.005 3000 60° 235x130x100 1.62kg + Add
Page 17 of the GIN TECH catalogue (PDF )

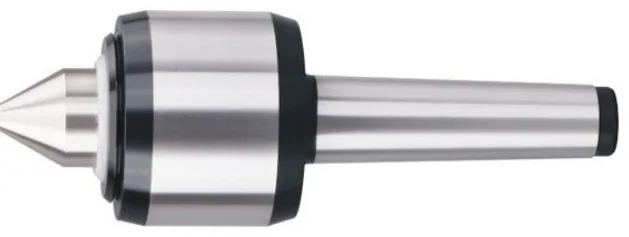

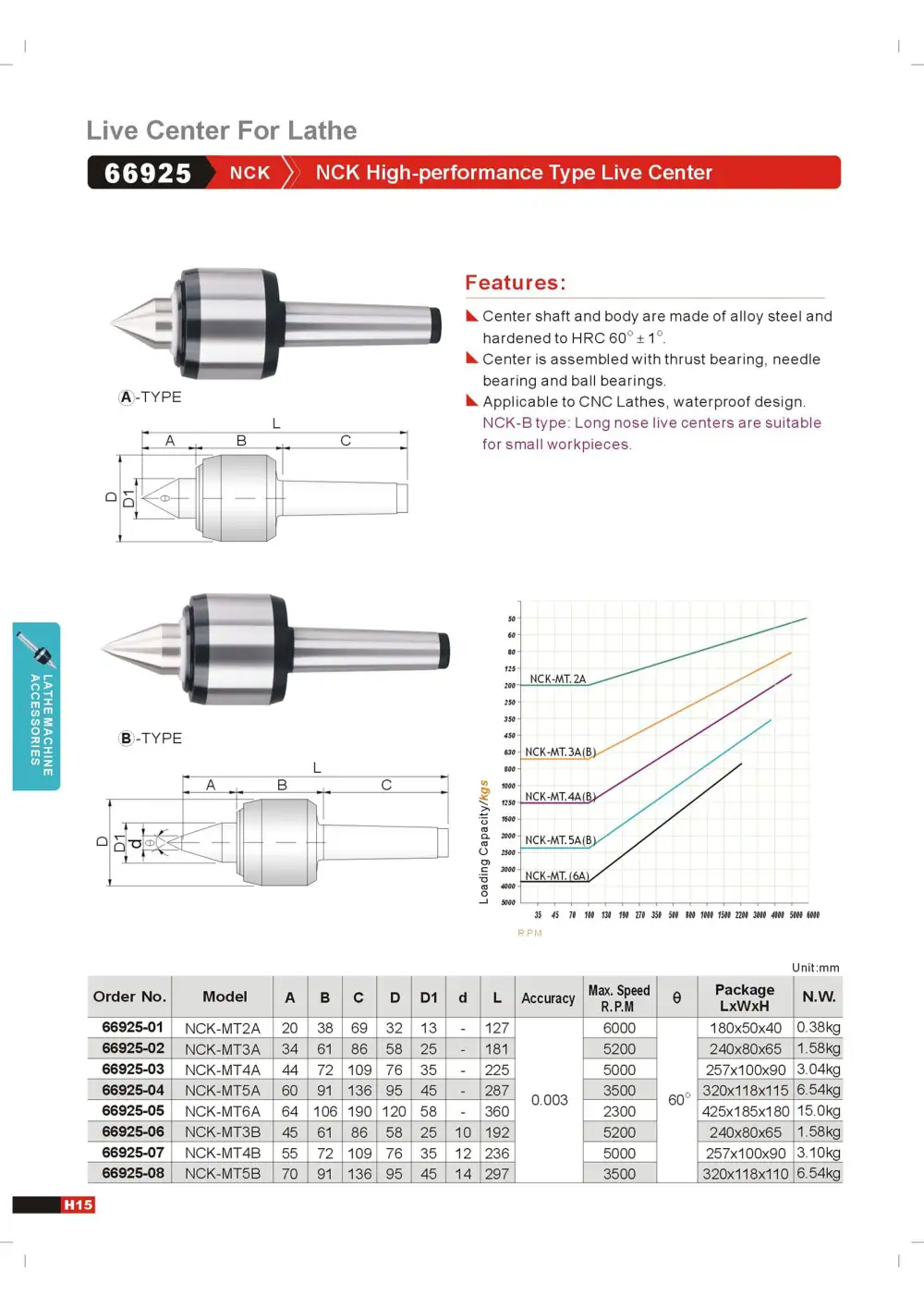

66925 NCK High-performance Type Live Center
Type NCK Versions 8 Interface MT2, MT3, MT4 Price on request
GIN TECH 66925 NCK High-performance Type Live CenterCenter shaft and body are made of alloy steel and hardened to HRC 60° ± 1°. Center is assembled with thrust bearing, needle bearing and ball bearings. Applicable to CNC Lathes, waterproof design. (dimensions in mm)
Order No. Model A B C D D1 d L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66925-01 NCK-MT2A 20 38 69 32 13 - 127 0.003 6000 60° 180x50x40 0.38kg + Add 66925-02 NCK-MT3A 34 61 86 58 25 - 181 0.003 5200 60° 240x80x65 1.58kg + Add 66925-03 NCK-MT4A 44 72 109 76 35 - 225 0.003 5000 60° 257x100x90 3.04kg + Add 66925-04 NCK-MT5A 60 91 136 95 45 - 287 0.003 3500 60° 320x118x115 6.54kg + Add 66925-05 NCK-MT6A 64 106 190 120 58 - 360 0.003 2300 60° 425x185x180 15.0kg + Add 66925-06 NCK-MT3B 45 61 86 58 25 10 192 0.003 5200 60° 240x80x65 1.58kg + Add 66925-07 NCK-MT4B 55 72 109 76 35 12 236 0.003 5000 60° 257x100x90 3.10kg + Add 66925-08 NCK-MT5B 70 91 136 95 45 14 297 0.003 3500 60° 320x118x110 6.54kg + Add
NCK-B type: Long nose live centers are suitable for small workpieces. Page 18 of the GIN TECH catalogue (PDF )

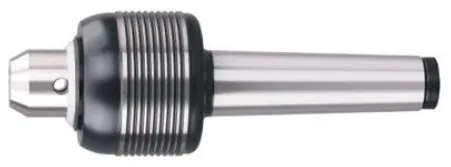

66928 66928
Type NCFP Versions 8 Interface MT3, MT4, MT5 Price on request
Model Ø L G345 Ø20, Ø45 52 G316 Ø15.5 47 G312 Ø12 47 G310 Ø10 47 G308 Ø8 47 G306 Ø6 47 G200 Ø6.5, Ø8 52
(dimensions in mm)
Order No. Model A B C D D1 d L d1 Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66927-01 NCF-MT3A 38 50 86 53 30 - 174 12 0.003 6000 60° 240x80x65 1.26kg + Add 66927-02 NCF-MT4A 45 60 108 68 32 - 213 12 0.003 5500 60° 257x100x90 2.38kg + Add 66927-03 NCF-MT5A 52 70 136 87 40 - 258 18 0.003 4000 60° 320x118x115 4.82kg + Add 66927-04 NCF-MT3B 52 50 86 53 30 10 188 12 0.003 6000 60° 240x80x65 1.28kg + Add 66927-05 NCF-MT4B 55 60 108 68 32 12 223 12 0.003 5500 60° 257x100x90 2.40kg + Add 66927-06 NCF-MT5B 67 70 136 87 40 14 273 18 0.003 4000 60° 320x118x115 4.90kg + Add 66928-01 NCFP-MT4 29 64 108 68 32 - 201 - 0.005 5500 30° 238x132x80 2.96kg + Add 66928-02 NCFP-MT5 37 70 136 87 40 - 243 - 0.005 4000 30° 280x150x106 5.40kg + Add

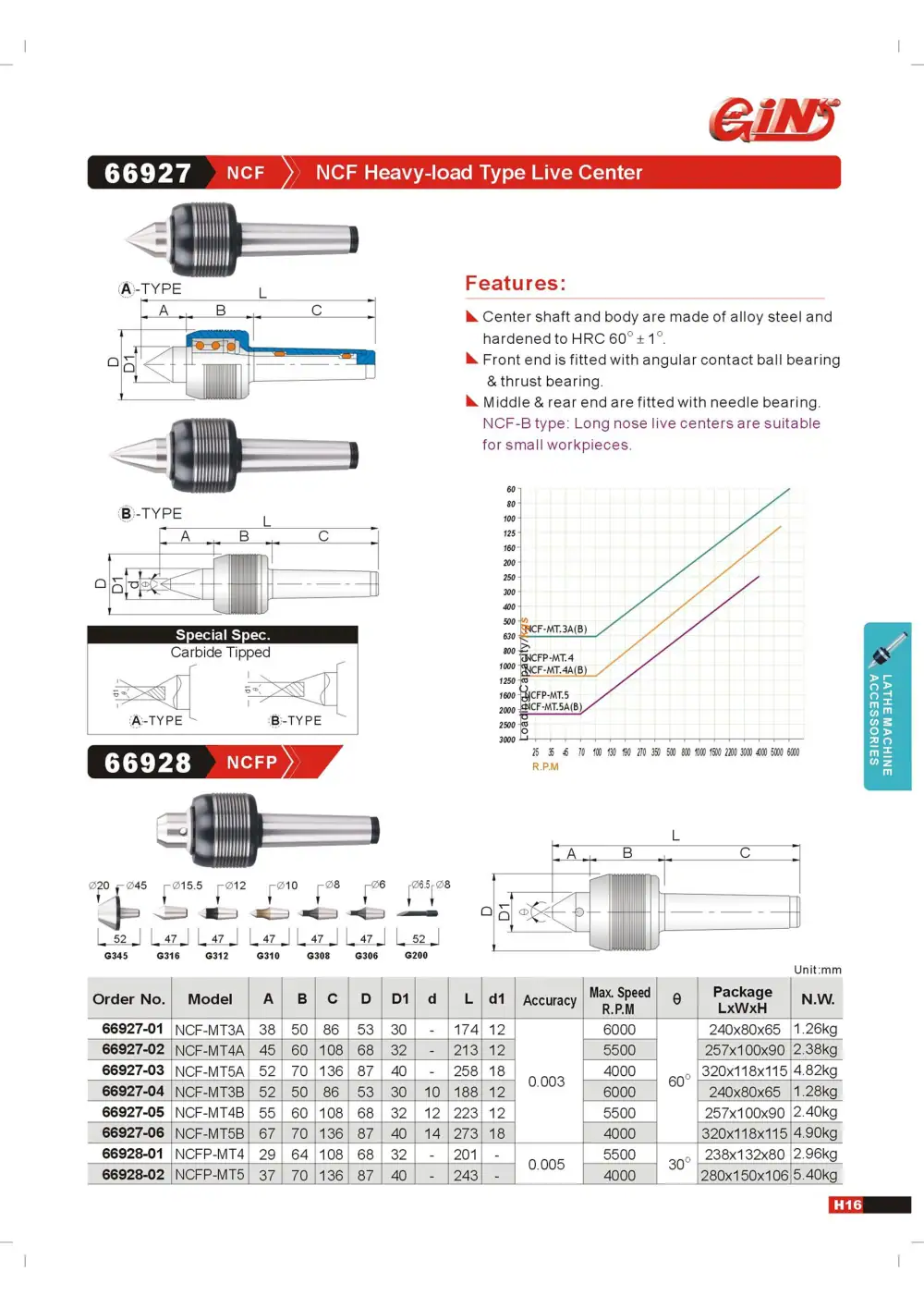

Page 19 of the GIN TECH catalogue (PDF )

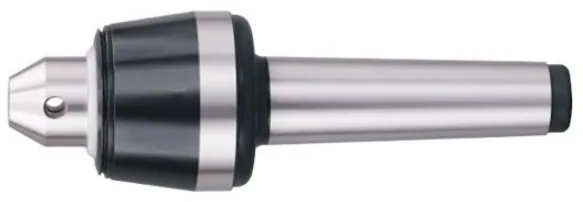

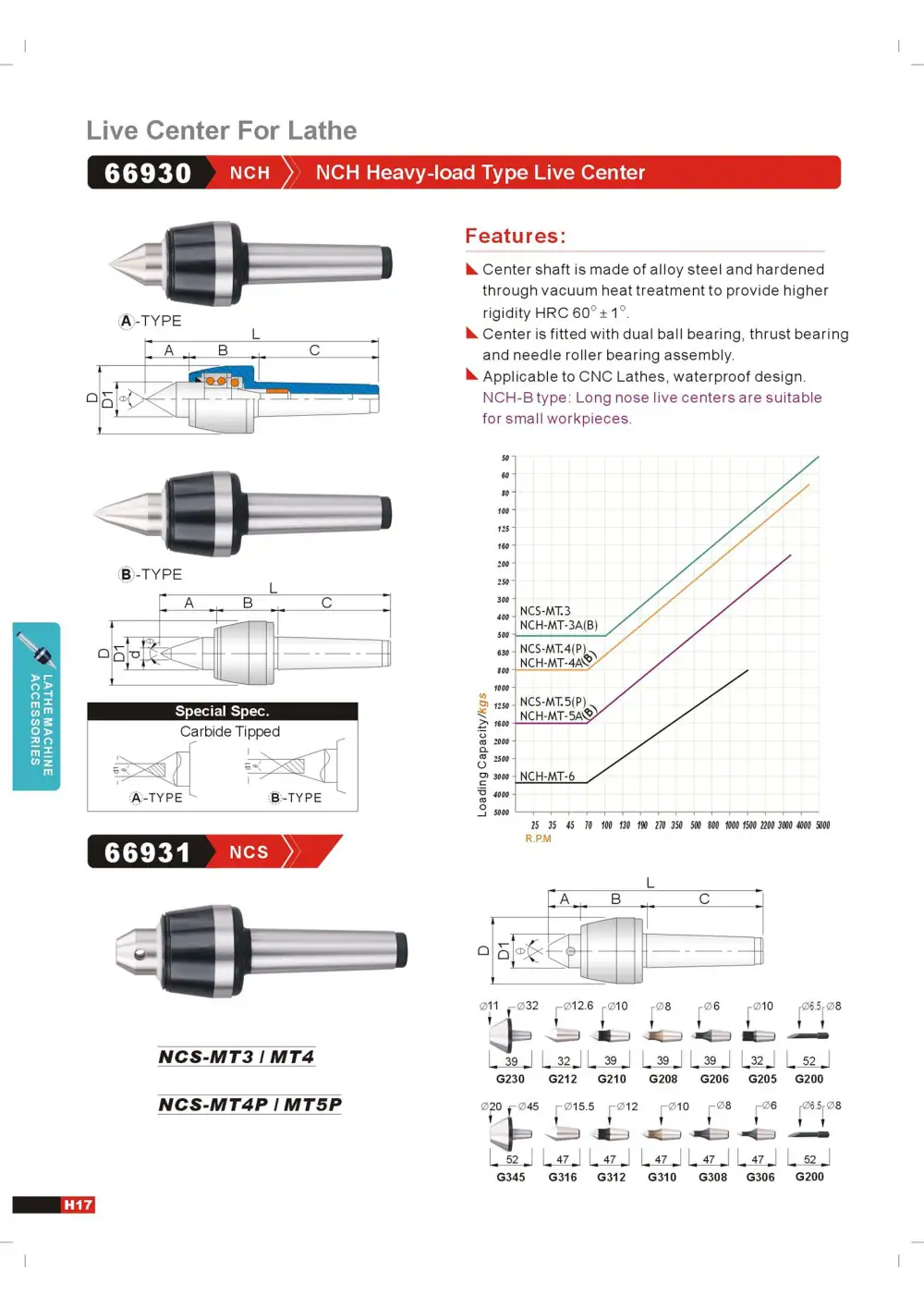

66931 66931
Type NCS Sizes 14 Price on request
NCS-MT3 / MT4
Model Ø L G230 Ø11, Ø32 39 G212 Ø12.6 32 G210 Ø10 39 G208 Ø8 39 G206 Ø6 39 G205 Ø10 32 G200 Ø6.5, Ø8 52
NCS-MT4P / MT5P
Model Ø L G345 Ø20, Ø45 52 G316 Ø15.5 47 G312 Ø12 47 G310 Ø10 47 G308 Ø8 47 G306 Ø6 47 G200 Ø6.5, Ø8 52
Page 20 of the GIN TECH catalogue (PDF )

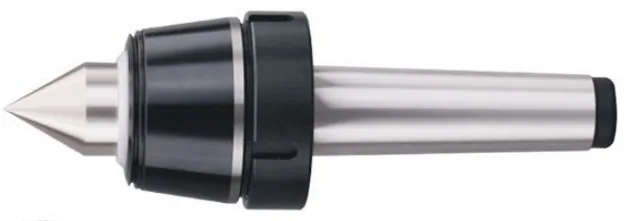

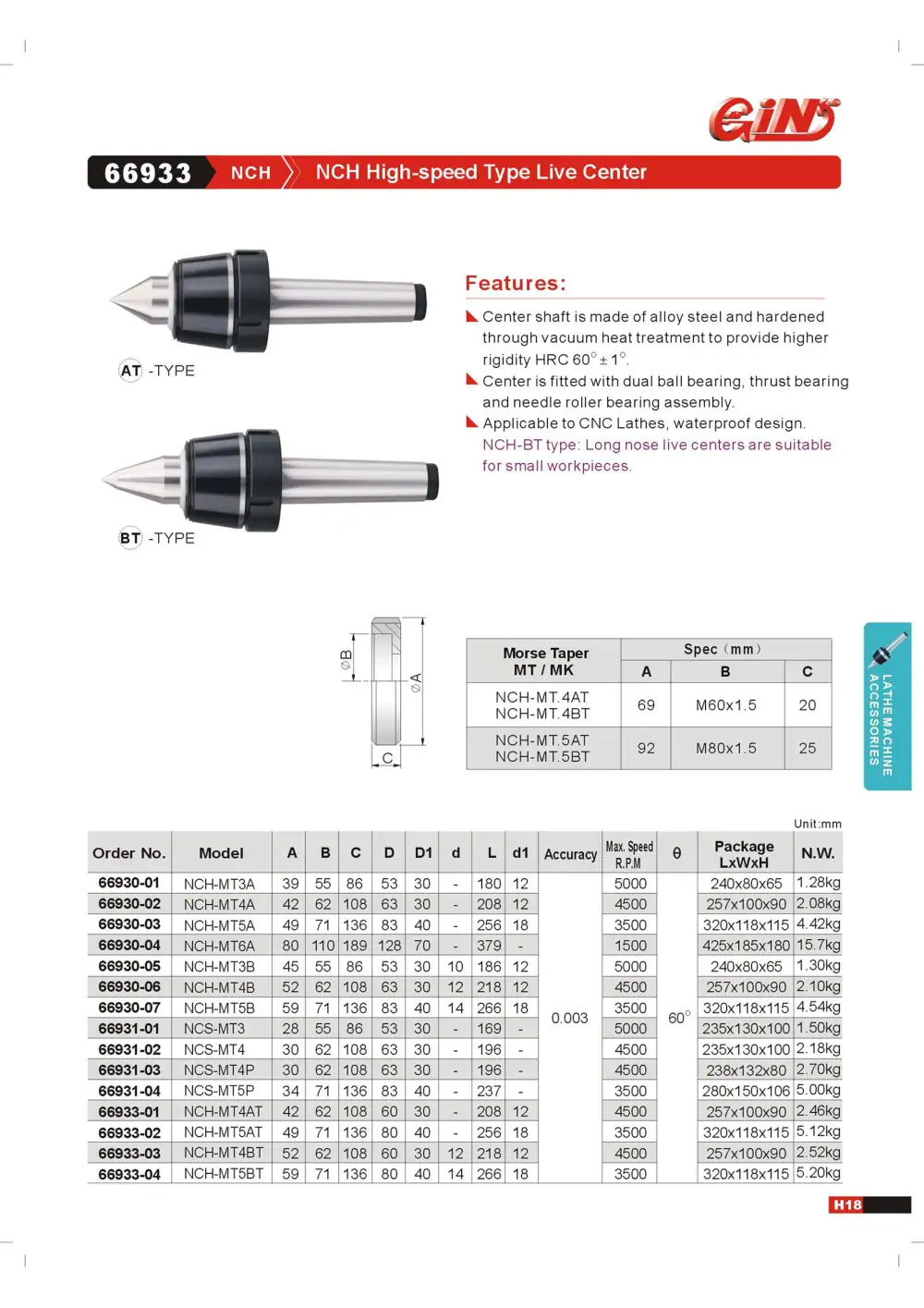

66933 NCH High-speed Type Live Center
Type NCH Versions 15 Interface MT3, MT4, MT5 Price on request
GIN TECH 66933 NCH High-speed Type Live CenterCenter shaft is made of alloy steel and hardened through vacuum heat treatment to provide higher rigidity HRC 60° ± 1°. Center is fitted with dual ball bearing, thrust bearing and needle roller bearing assembly. Applicable to CNC Lathes, waterproof design. (dimensions in mm)
Morse Taper MT / MK A B C NCH-MT.4AT NCH-MT.4BT 69 M60x1.5 20 NCH-MT.5AT NCH-MT.5BT 92 M80x1.5 25
(dimensions in mm)
Order No. Model A B C D D1 d L d1 Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66930-01 NCH-MT3A 39 55 86 53 30 - 180 12 0.003 5000 60° 240x80x65 1.28kg + Add 66930-02 NCH-MT4A 42 62 108 63 30 - 208 12 0.003 4500 60° 257x100x90 2.08kg + Add 66930-03 NCH-MT5A 49 71 136 83 40 - 256 18 0.003 3500 60° 320x118x115 4.42kg + Add 66930-04 NCH-MT6A 80 110 189 128 70 - 379 - 0.003 1500 60° 425x185x180 15.7kg + Add 66930-05 NCH-MT3B 45 55 86 53 30 10 186 12 0.003 5000 60° 240x80x65 1.30kg + Add 66930-06 NCH-MT4B 52 62 108 63 30 12 218 12 0.003 4500 60° 257x100x90 2.10kg + Add 66930-07 NCH-MT5B 59 71 136 83 40 14 266 18 0.003 3500 60° 320x118x115 4.54kg + Add 66931-01 NCS-MT3 28 55 86 53 30 - 169 - 0.003 5000 60° 235x130x100 1.50kg + Add 66931-02 NCS-MT4 30 62 108 63 30 - 196 - 0.003 4500 60° 235x130x100 2.18kg + Add 66931-03 NCS-MT4P 30 62 108 63 30 - 196 - 0.003 4500 60° 238x132x80 2.70kg + Add 66931-04 NCS-MT5P 34 71 136 83 40 - 237 - 0.003 3500 60° 280x150x106 5.00kg + Add 66933-01 NCH-MT4AT 42 62 108 60 30 - 208 12 0.003 4500 60° 257x100x90 2.46kg + Add 66933-02 NCH-MT5AT 49 71 136 80 40 - 256 18 0.003 3500 60° 320x118x115 5.12kg + Add 66933-03 NCH-MT4BT 52 62 108 60 30 12 218 12 0.003 4500 60° 257x100x90 2.52kg + Add 66933-04 NCH-MT5BT 59 71 136 80 40 14 266 18 0.003 3500 60° 320x118x115 5.20kg + Add
NCH-BT type: Long nose live centers are suitable for small workpieces. Page 21 of the GIN TECH catalogue (PDF )

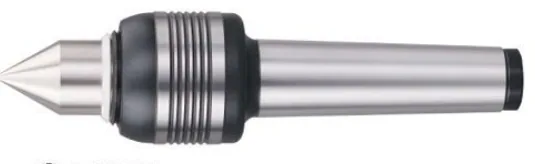

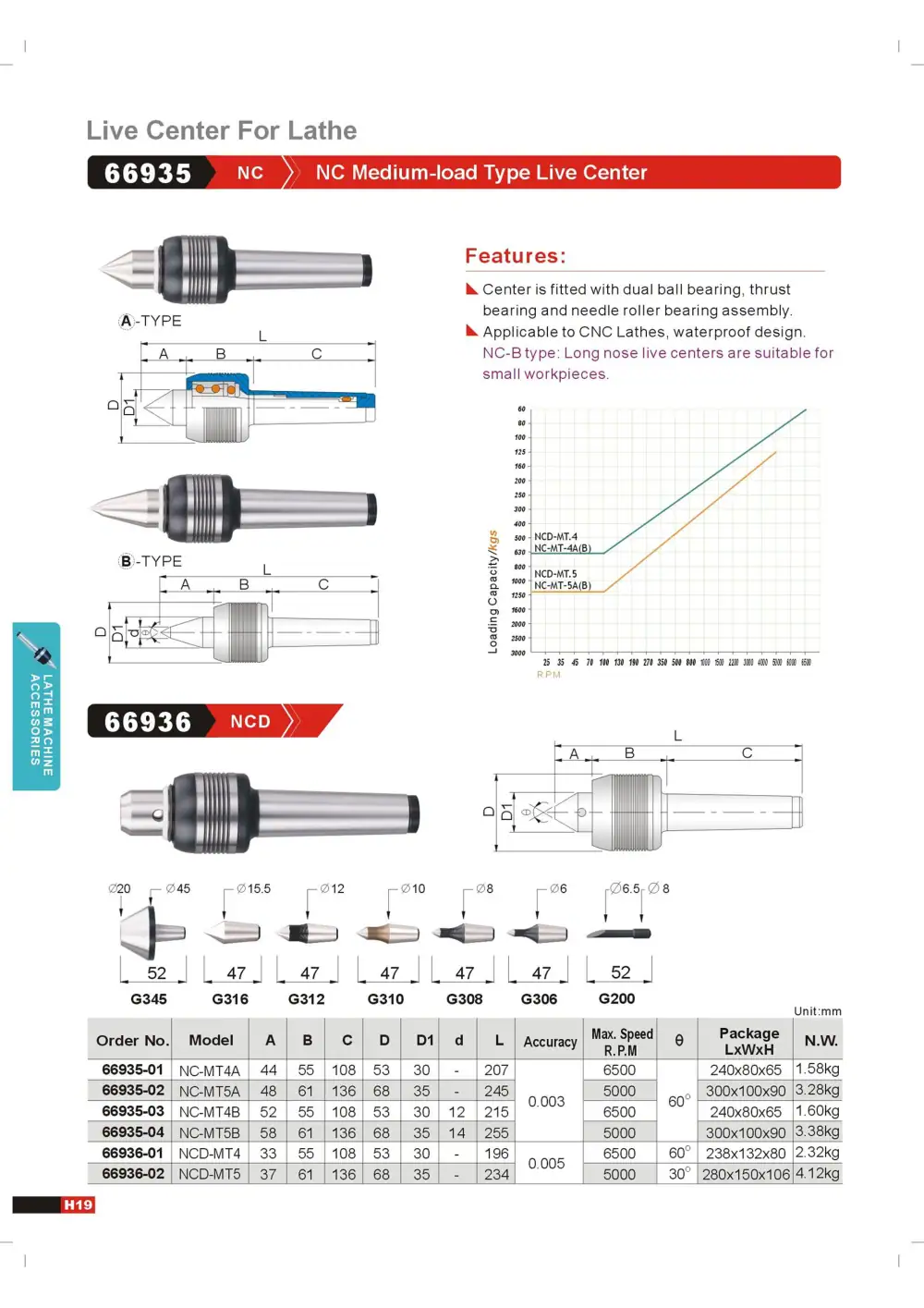

66936 66936
Type NCD Versions 6 Interface MT4, MT5 Price on request
Model Ø L G345 Ø20, Ø45 52 G316 Ø15.5 47 G312 Ø12 47 G310 Ø10 47 G308 Ø8 47 G306 Ø6 47 G200 Ø6.5, Ø8 52
(dimensions in mm)
Order No. Model A B C D D1 d L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66935-01 NC-MT4A 44 55 108 53 30 - 207 0.003 6500 60° 240x80x65 1.58kg + Add 66935-02 NC-MT5A 48 61 136 68 35 - 245 0.003 5000 60° 300x100x90 3.28kg + Add 66935-03 NC-MT4B 52 55 108 53 30 12 215 0.003 6500 60° 240x80x65 1.60kg + Add 66935-04 NC-MT5B 58 61 136 68 35 14 255 0.003 5000 60° 300x100x90 3.38kg + Add 66936-01 NCD-MT4 33 55 108 53 30 - 196 0.005 6500 60° 238x132x80 2.32kg + Add 66936-02 NCD-MT5 37 61 136 68 35 - 234 0.005 5000 30° 280x150x106 4.12kg + Add
Page 22 of the GIN TECH catalogue (PDF )

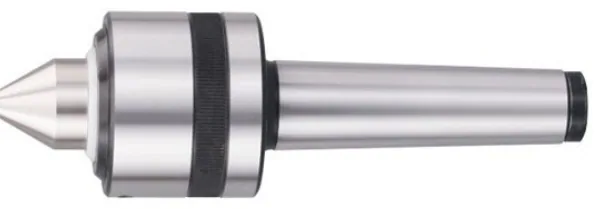

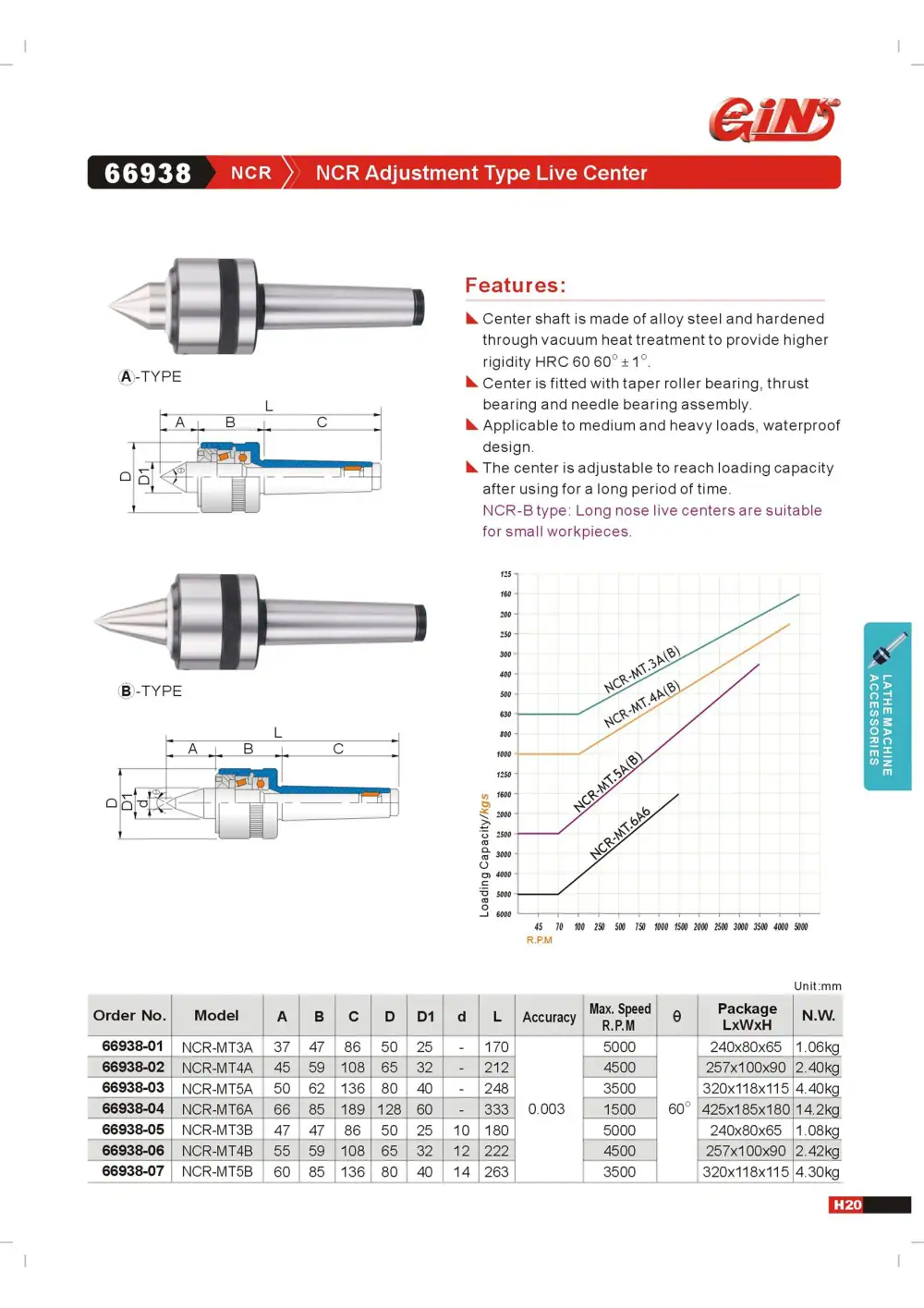

66938 NCR Adjustment Type Live Center
Type NCR Versions 7 Interface MT3, MT4, MT5 Price on request
GIN TECH 66938 NCR Adjustment Type Live CenterCenter shaft is made of alloy steel and hardened through vacuum heat treatment to provide higher rigidity HRC 60° ± 1°. Center is fitted with taper roller bearing, thrust bearing and needle bearing assembly. Applicable to medium and heavy loads, waterproof design. The center is adjustable to reach loading capacity after using for a long period of time. (dimensions in mm)
Order No. Model A B C D D1 d L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66938-01 NCR-MT3A 37 47 86 50 25 - 170 0.003 5000 60° 240x80x65 1.06kg + Add 66938-02 NCR-MT4A 45 59 108 65 32 - 212 0.003 4500 60° 257x100x90 2.40kg + Add 66938-03 NCR-MT5A 50 62 136 80 40 - 248 0.003 3500 60° 320x118x115 4.40kg + Add 66938-04 NCR-MT6A 66 85 189 128 60 - 333 0.003 1500 60° 425x185x180 14.2kg + Add 66938-05 NCR-MT3B 47 47 86 50 25 10 180 0.003 5000 60° 240x80x65 1.08kg + Add 66938-06 NCR-MT4B 55 59 108 65 32 12 222 0.003 4500 60° 257x100x90 2.42kg + Add 66938-07 NCR-MT5B 60 85 136 80 40 14 263 0.003 3500 60° 320x118x115 4.30kg + Add
NCR-B type: Long nose live centers are suitable for small workpieces. Page 23 of the GIN TECH catalogue (PDF )

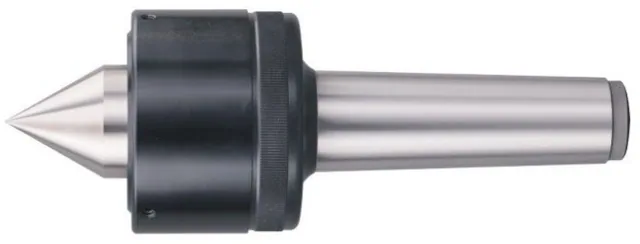

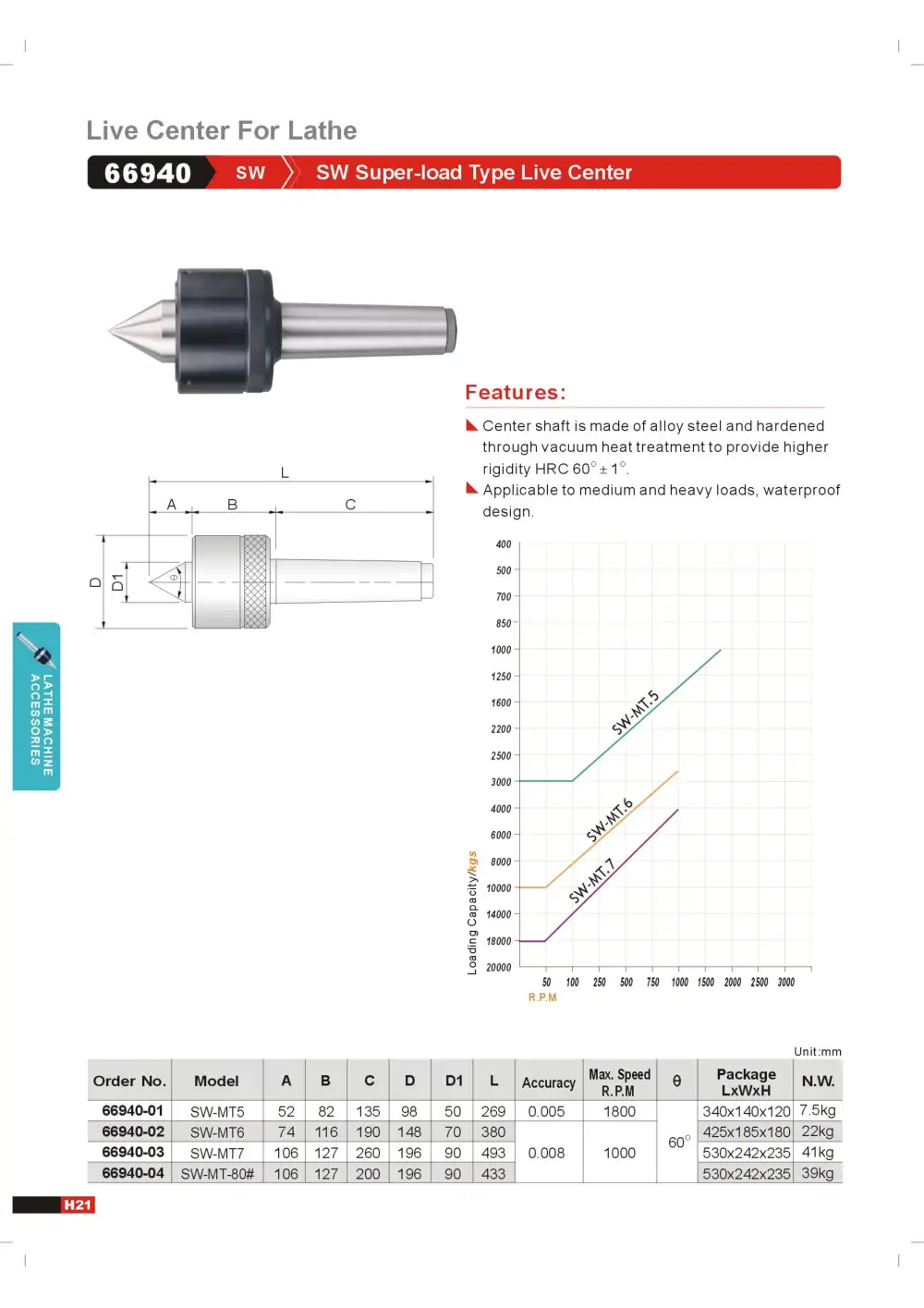

66940 SW Super-load Type Live Center
Type SW Versions 4 Interface MT5, MT6 Price on request
GIN TECH 66940 SW Super-load Type Live CenterCenter shaft is made of alloy steel and hardened through vacuum heat treatment to provide higher rigidity HRC 60° ± 1°. Applicable to medium and heavy loads, waterproof design. (dimensions in mm)
Order No. Model A B C D D1 L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66940-01 SW-MT5 52 82 135 98 50 269 0.005 1800 60° 340x140x120 7.5kg + Add 66940-02 SW-MT6 74 116 190 148 70 380 0.008 1000 60° 425x185x180 22kg + Add 66940-03 SW-MT7 106 127 260 196 90 493 0.008 1000 60° 530x242x235 41kg + Add 66940-04 SW-MT-80# 106 127 200 196 90 433 0.008 1000 60° 530x242x235 39kg + Add

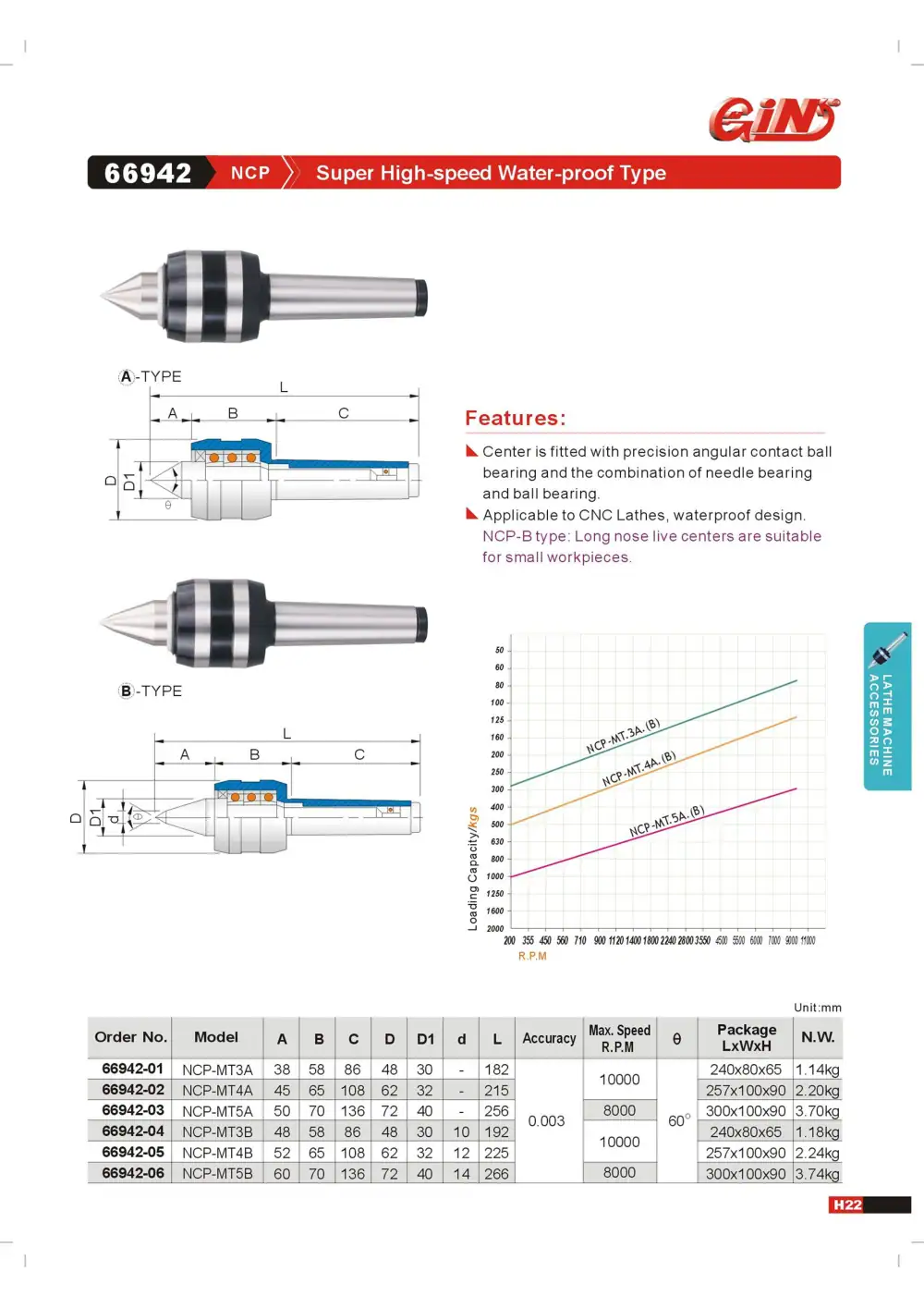

Page 24 of the GIN TECH catalogue (PDF )

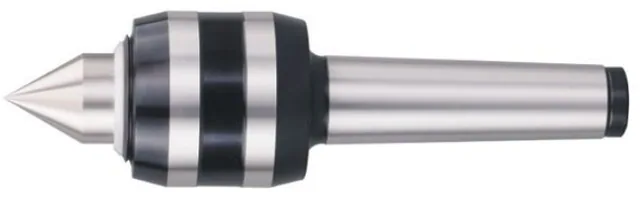

66942 Super High-speed Water-proof Type
Type NCP Versions 6 Interface MT3, MT4, MT5 Price on request
GIN TECH 66942 Super High-speed Water-proof TypeCenter is fitted with precision angular contact ball bearing and the combination of needle bearing and ball bearing. Applicable to CNC Lathes, waterproof design. (dimensions in mm)
Order No. Model A B C D D1 d L Accuracy Max. Speed R.P.M θ Package LxWxH N.W. Add 66942-01 NCP-MT3A 38 58 86 48 30 - 182 0.003 10000 60° 240x80x65 1.14kg + Add 66942-02 NCP-MT4A 45 65 108 62 32 - 215 0.003 10000 60° 257x100x90 2.20kg + Add 66942-03 NCP-MT5A 50 70 136 72 40 - 256 0.003 8000 60° 300x100x90 3.70kg + Add 66942-04 NCP-MT3B 48 58 86 48 30 10 192 0.003 10000 60° 240x80x65 1.18kg + Add 66942-05 NCP-MT4B 52 65 108 62 32 12 225 0.003 10000 60° 257x100x90 2.24kg + Add 66942-06 NCP-MT5B 60 70 136 72 40 14 266 0.003 8000 60° 300x100x90 3.74kg + Add
NCP-B type: Long nose live centers are suitable for small workpieces. Page 25 of the GIN TECH catalogue (PDF )

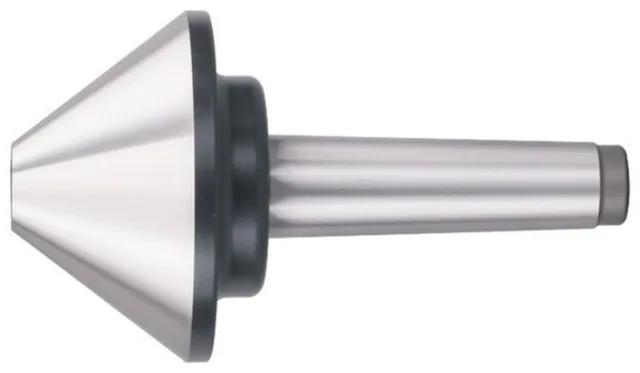

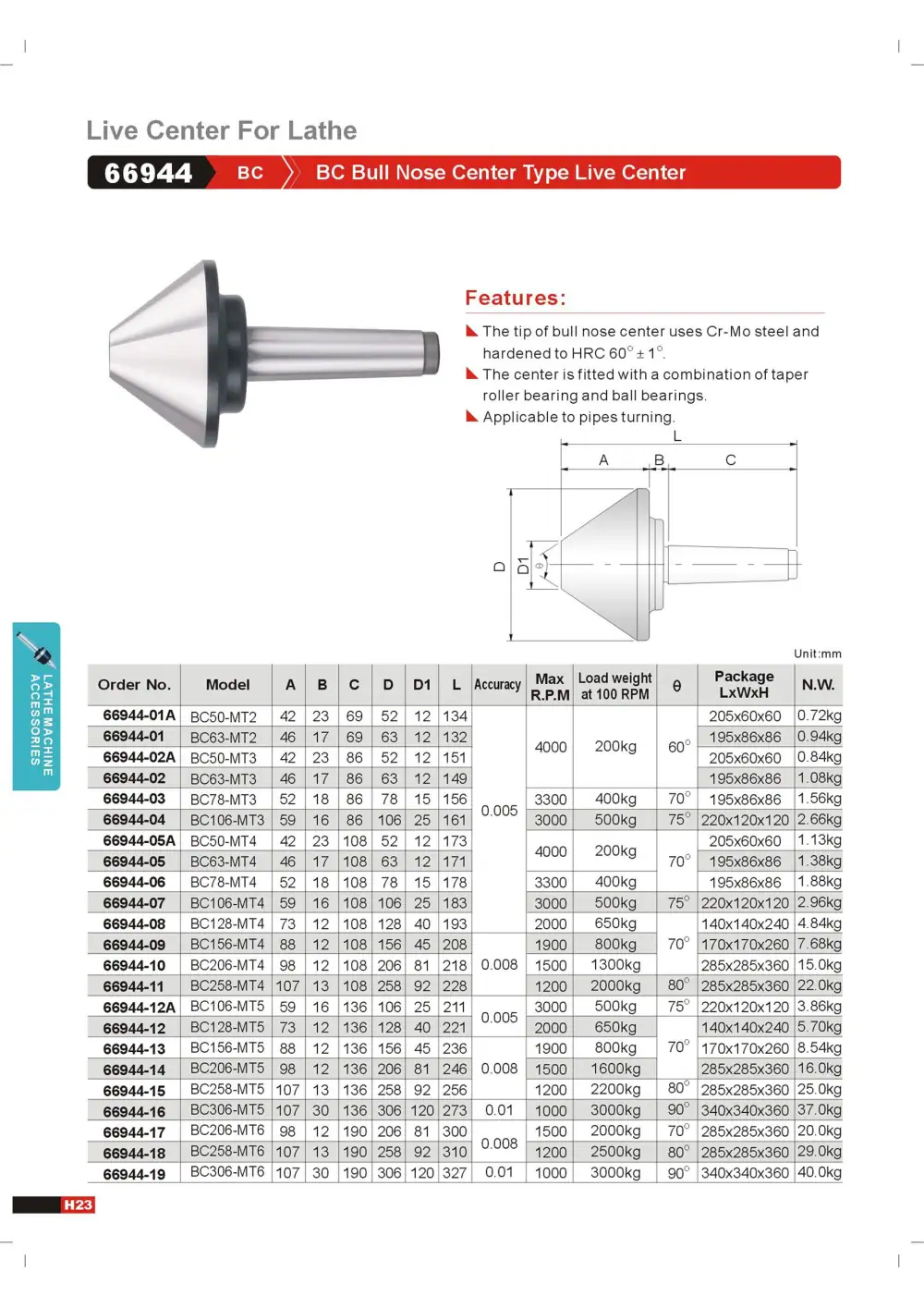

66944 BC Bull Nose Center Type Live Center
Type BC Versions 23 Interface MT2, MT3, MT4 Price on request
GIN TECH 66944 BC Bull Nose Center Type Live CenterThe tip of bull nose center uses Cr-Mo steel and hardened to HRC 60° ± 1°. The center is fitted with a combination of taper roller bearing and ball bearings. Applicable to pipe turning. (dimensions in mm)
Order No. Model A B C D D1 L Accuracy Max R.P.M Load weight at 100 RPM θ Package LxWxH N.W. Add 66944-01A BC50-MT2 42 23 69 52 12 134 0.005 4000 200kg 60° 205x60x60 0.72kg + Add 66944-01 BC63-MT2 46 17 69 63 12 132 0.005 4000 200kg 60° 195x86x86 0.94kg + Add 66944-02A BC50-MT3 42 23 86 52 12 151 0.005 4000 200kg 60° 205x60x60 0.84kg + Add 66944-02 BC63-MT3 46 17 86 63 12 149 0.005 4000 200kg 60° 195x86x86 1.08kg + Add 66944-03 BC78-MT3 52 18 86 78 15 156 0.005 3300 400kg 70° 195x86x86 1.56kg + Add 66944-04 BC106-MT3 59 16 86 106 25 161 0.005 3000 500kg 75° 220x120x120 2.66kg + Add 66944-05A BC50-MT4 42 23 108 52 12 173 0.005 4000 200kg 70° 205x60x60 1.13kg + Add 66944-05 BC63-MT4 46 17 108 63 12 171 0.005 4000 200kg 70° 195x86x86 1.38kg + Add 66944-06 BC78-MT4 52 18 108 78 15 178 0.005 3300 400kg 70° 195x86x86 1.88kg + Add 66944-07 BC106-MT4 59 16 108 106 25 183 0.005 3000 500kg 75° 220x120x120 2.96kg + Add 66944-08 BC128-MT4 73 12 108 128 40 193 0.005 2000 650kg 70° 140x140x240 4.84kg + Add 66944-09 BC156-MT4 88 12 108 156 45 208 0.008 1900 800kg 70° 170x170x260 7.68kg + Add 66944-10 BC206-MT4 98 12 108 206 81 218 0.008 1500 1300kg 70° 285x285x360 15.0kg + Add 66944-11 BC258-MT4 107 13 108 258 92 228 0.008 1200 2000kg 80° 285x285x360 22.0kg + Add 66944-12A BC106-MT5 59 16 136 106 25 211 0.005 3000 500kg 75° 220x120x120 3.86kg + Add 66944-12 BC128-MT5 73 12 136 128 40 221 0.005 2000 650kg 70° 140x140x240 5.70kg + Add 66944-13 BC156-MT5 88 12 136 156 45 236 0.008 1900 800kg 70° 170x170x260 8.54kg + Add 66944-14 BC206-MT5 98 12 136 206 81 246 0.008 1500 1600kg 70° 285x285x360 16.0kg + Add 66944-15 BC258-MT5 107 13 136 258 92 256 0.008 1200 2200kg 80° 285x285x360 25.0kg + Add 66944-16 BC306-MT5 107 30 136 306 120 273 0.01 1000 3000kg 90° 340x340x360 37.0kg + Add 66944-17 BC206-MT6 98 12 190 206 81 300 0.008 1500 2000kg 70° 285x285x360 20.0kg + Add 66944-18 BC258-MT6 107 13 190 258 92 310 0.008 1200 2500kg 80° 285x285x360 29.0kg + Add 66944-19 BC306-MT6 107 30 190 306 120 327 0.01 1000 3000kg 90° 340x340x360 40.0kg + Add
Page 26 of the GIN TECH catalogue (PDF )

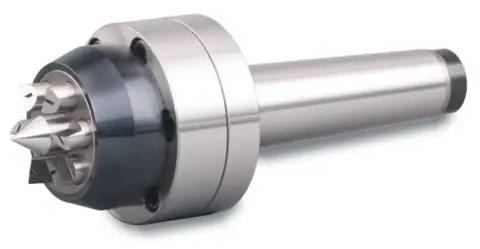

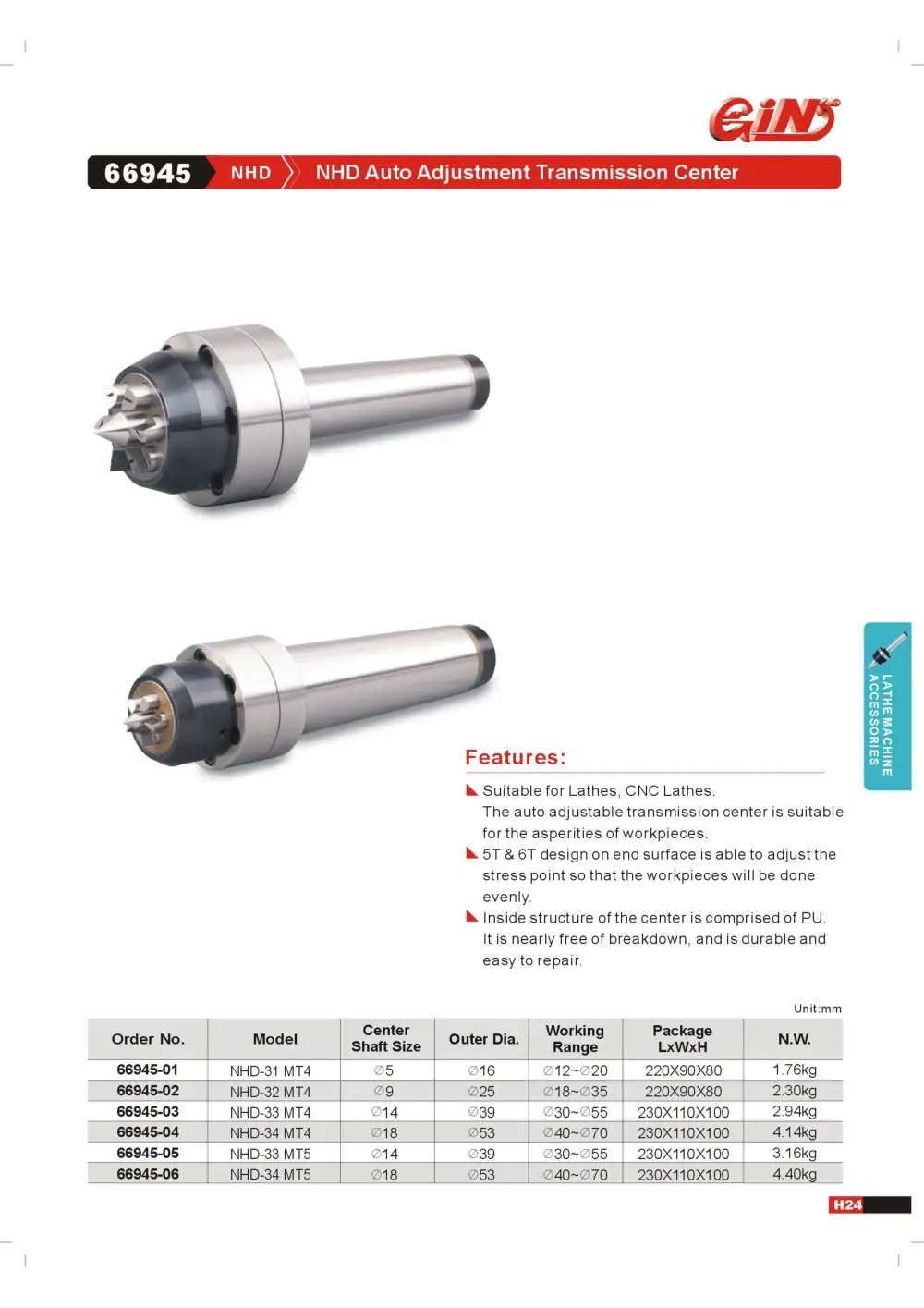

66945 NHD Auto Adjustment Transmission Center
Type NHD Versions 6 Interface MT4, MT5 Price on request
GIN TECH 66945 NHD Auto Adjustment Transmission CenterSuitable for lathes and CNC lathes. The auto adjustable transmission center is suitable for the asperities of workpieces. The 5T & 6T design on the end surface is able to adjust the stress point so that the workpieces will be machined evenly. Inside structure of the center is comprised of PU. It is nearly free of breakdown, and is durable and easy to repair. (dimensions in mm)
Order No. Model Center Shaft Size Outer Dia. Working Range Package LxWxH N.W. Add 66945-01 NHD-31 MT4 Ø5 Ø16 Ø12~Ø20 220X90X80 1.76kg + Add 66945-02 NHD-32 MT4 Ø9 Ø25 Ø18~Ø35 220X90X80 2.30kg + Add 66945-03 NHD-33 MT4 Ø14 Ø39 Ø30~Ø55 230X110X100 2.94kg + Add 66945-04 NHD-34 MT4 Ø18 Ø53 Ø40~Ø70 230X110X100 4.14kg + Add 66945-05 NHD-33 MT5 Ø14 Ø39 Ø30~Ø55 230X110X100 3.16kg + Add 66945-06 NHD-34 MT5 Ø18 Ø53 Ø40~Ø70 230X110X100 4.40kg + Add
Page 27 of the GIN TECH catalogue (PDF )

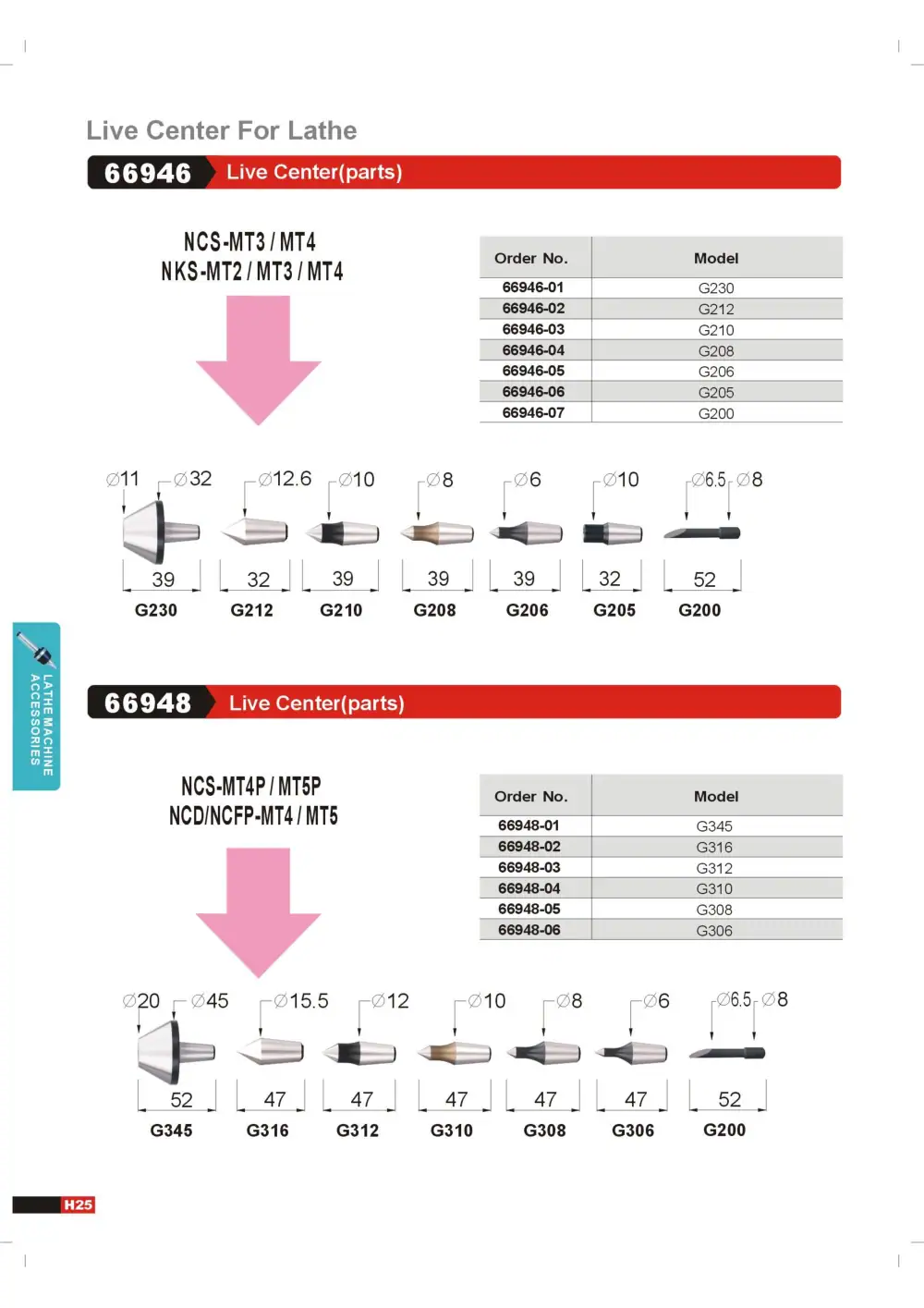

66946 Live Center (parts)
Versions 7 Price on request
GIN TECH 66946 Live Center (parts)Model Ø L G230 Ø11, Ø32 39 G212 Ø12.6 32 G210 Ø10 39 G208 Ø8 39 G206 Ø6 39 G205 Ø10 32 G200 Ø6.5, Ø8 52
Page 28 of the GIN TECH catalogue (PDF )
66948 Live Center (parts)
Versions 6 Price on request
GIN TECH 66948 Live Center (parts)Model Ø L G345 Ø20, Ø45 52 G316 Ø15.5 47 G312 Ø12 47 G310 Ø10 47 G308 Ø8 47 G306 Ø6 47 G200 Ø6.5, Ø8 52
Page 28 of the GIN TECH catalogue (PDF )

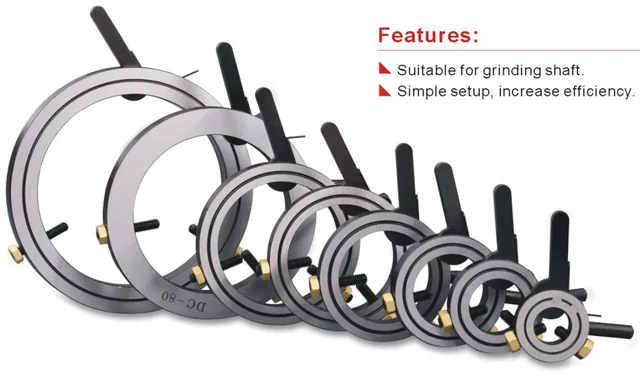

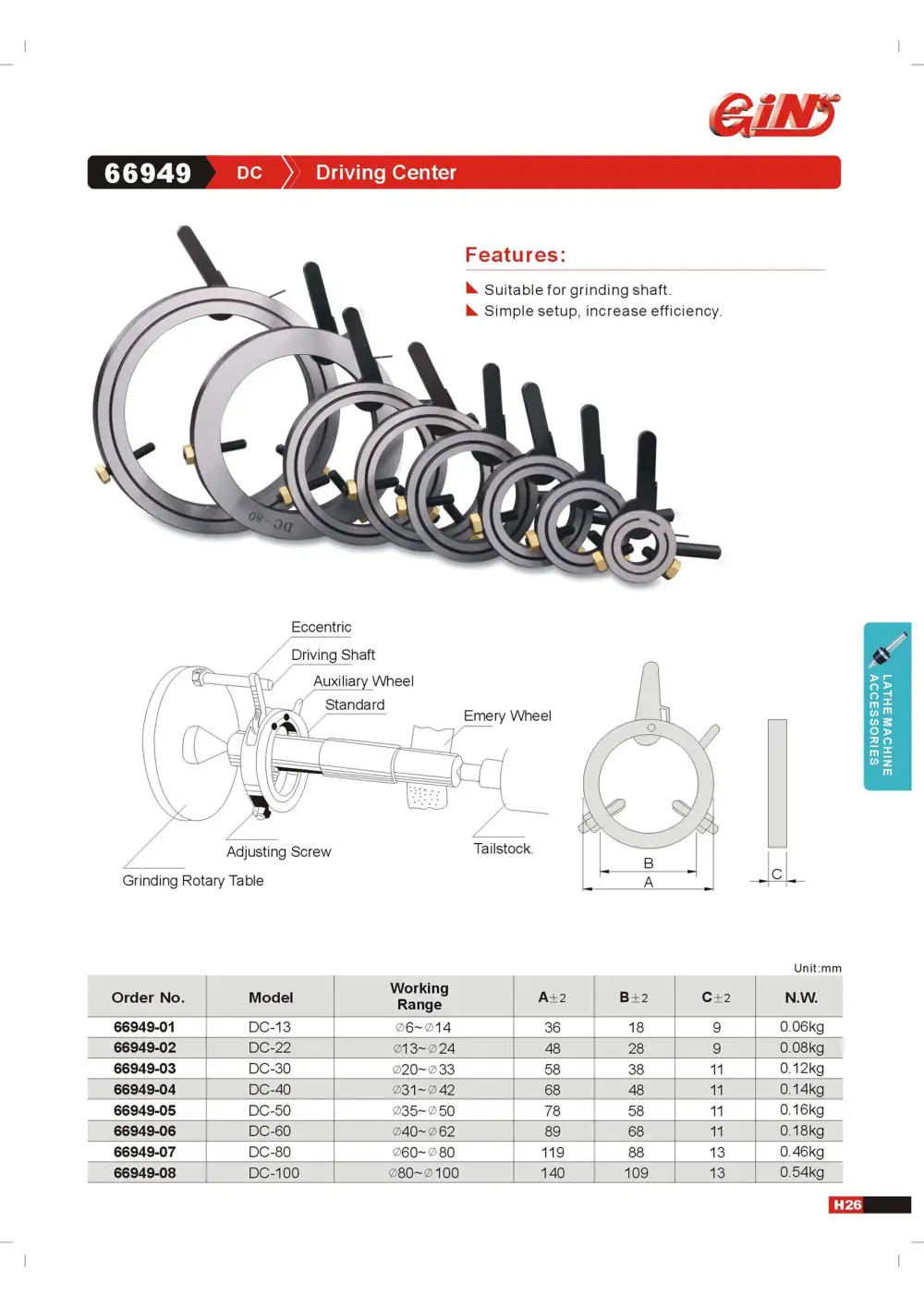

66949 Driving Center
Type DC Versions 8 Price on request
GIN TECH 66949 Driving CenterSuitable for grinding shafts. Simple setup, increases efficiency. (dimensions in mm)
Order No. Model Working Range A±2 B±2 C±2 N.W. Add 66949-01 DC-13 Ø6~Ø14 36 18 9 0.06kg + Add 66949-02 DC-22 Ø13~Ø24 48 28 9 0.08kg + Add 66949-03 DC-30 Ø20~Ø33 58 38 11 0.12kg + Add 66949-04 DC-40 Ø31~Ø42 68 48 11 0.14kg + Add 66949-05 DC-50 Ø35~Ø50 78 58 11 0.16kg + Add 66949-06 DC-60 Ø40~Ø62 89 68 11 0.18kg + Add 66949-07 DC-80 Ø60~Ø80 119 88 13 0.46kg + Add 66949-08 DC-100 Ø80~Ø100 140 109 13 0.54kg + Add
Page 29 of the GIN TECH catalogue (PDF )

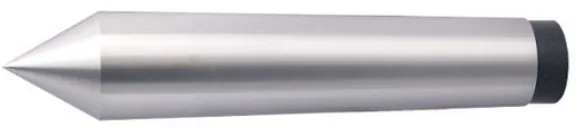

66950 Solid Centers Of Medium Carbon Steel
Type SMT Versions 6 Interface MT1, MT2, MT3 Price on request
GIN TECH 66950 Solid Centers Of Medium Carbon SteelStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a L1 L Accuracy θ Add 66950-01 SMT1 MT1 12.065 3.5 25 82 0.005 60° + Add 66950-02 SMT2 MT2 17.780 5 31 100 0.005 60° + Add 66950-03 SMT3 MT3 23.825 5 39 125 0.005 60° + Add 66950-04 SMT4 MT4 31.267 6.5 46 155 0.005 60° + Add 66950-05 SMT5 MT5 44.399 6.5 64 200 0.005 60° + Add 66950-06 SMT6 MT6 63.348 8 80 270 0.005 60° + Add

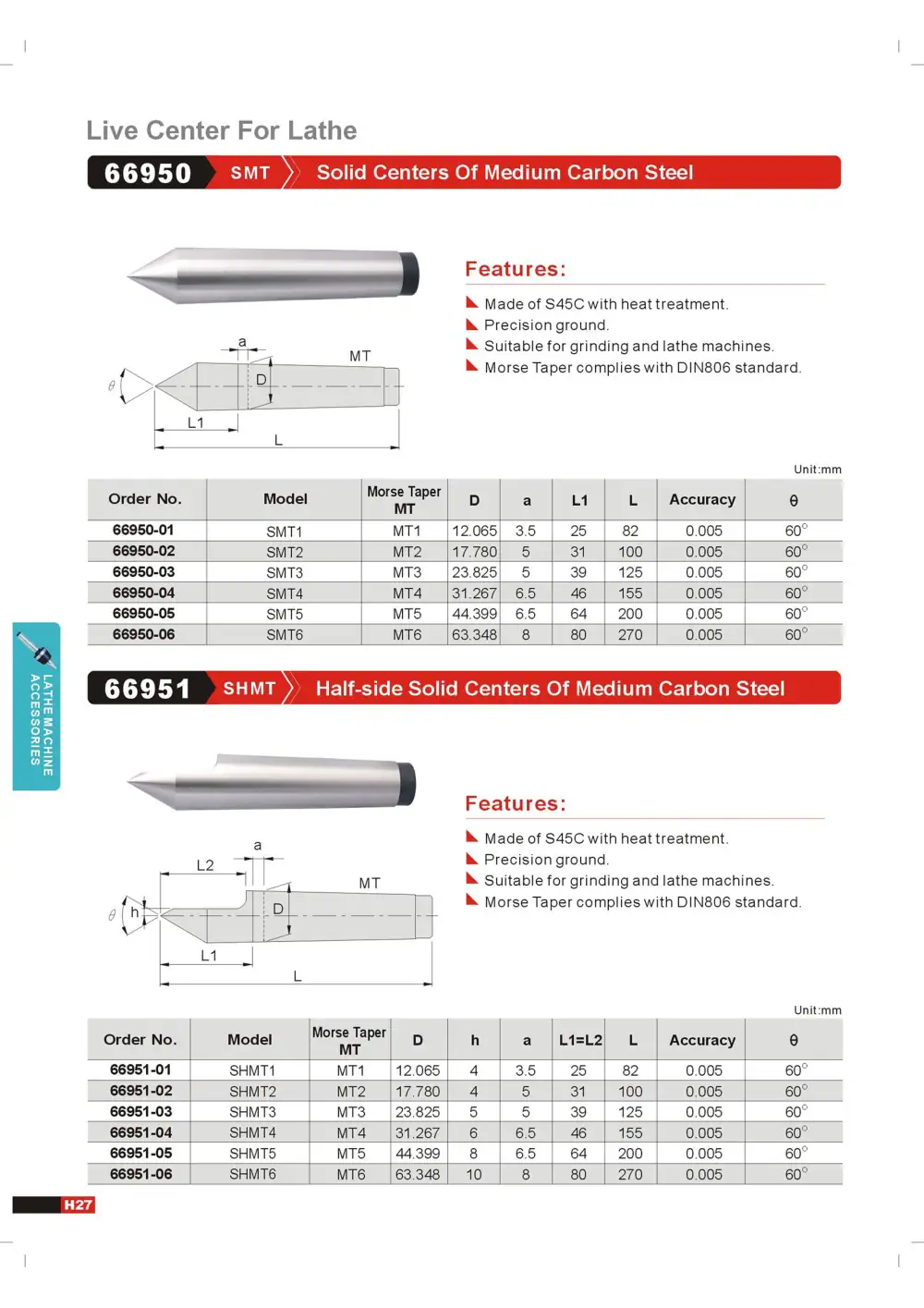

Page 30 of the GIN TECH catalogue (PDF )
66951 Half-side Solid Centers Of Medium Carbon Steel
Type SHMT Versions 6 Interface MT1, MT2, MT3 Price on request
GIN TECH 66951 Half-side Solid Centers Of Medium Carbon SteelStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D h a L1=L2 L Accuracy θ Add 66951-01 SHMT1 MT1 12.065 4 3.5 25 82 0.005 60° + Add 66951-02 SHMT2 MT2 17.780 4 5 31 100 0.005 60° + Add 66951-03 SHMT3 MT3 23.825 5 5 39 125 0.005 60° + Add 66951-04 SHMT4 MT4 31.267 6 6.5 46 155 0.005 60° + Add 66951-05 SHMT5 MT5 44.399 8 6.5 64 200 0.005 60° + Add 66951-06 SHMT6 MT6 63.348 10 8 80 270 0.005 60° + Add
Page 30 of the GIN TECH catalogue (PDF )

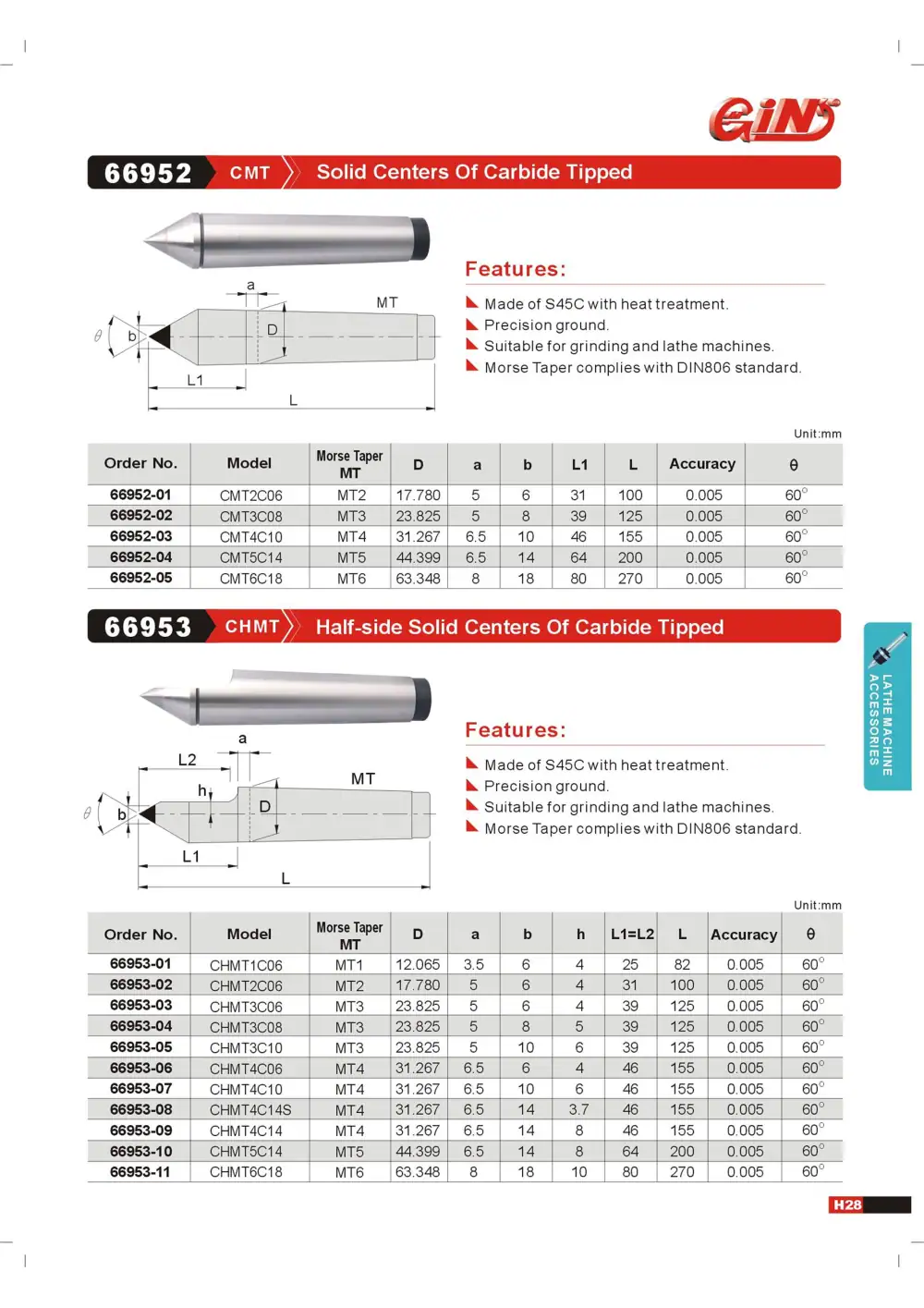

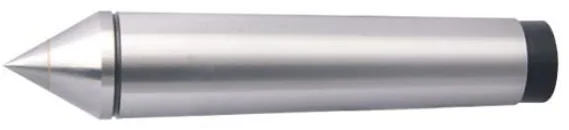

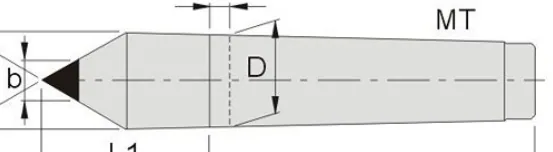

66952 Solid Centers Of Carbide Tipped
Type CMT Versions 5 Interface MT2, MT3, MT4 Price on request
GIN TECH 66952 Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b L1 L Accuracy θ Add 66952-01 CMT2C06 MT2 17.780 5 6 31 100 0.005 60° + Add 66952-02 CMT3C08 MT3 23.825 5 8 39 125 0.005 60° + Add 66952-03 CMT4C10 MT4 31.267 6.5 10 46 155 0.005 60° + Add 66952-04 CMT5C14 MT5 44.399 6.5 14 64 200 0.005 60° + Add 66952-05 CMT6C18 MT6 63.348 8 18 80 270 0.005 60° + Add
Page 31 of the GIN TECH catalogue (PDF )

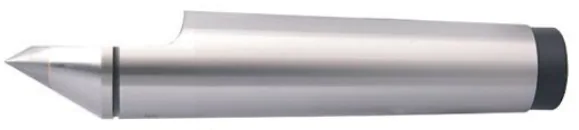

66953 Half-side Solid Centers Of Carbide Tipped
Type CHMT Versions 11 Interface MT1, MT2, MT3 Price on request
GIN TECH 66953 Half-side Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b h L1=L2 L Accuracy θ Add 66953-01 CHMT1C06 MT1 12.065 3.5 6 4 25 82 0.005 60° + Add 66953-02 CHMT2C06 MT2 17.780 5 6 4 31 100 0.005 60° + Add 66953-03 CHMT3C06 MT3 23.825 5 6 4 39 125 0.005 60° + Add 66953-04 CHMT3C08 MT3 23.825 5 8 5 39 125 0.005 60° + Add 66953-05 CHMT3C10 MT3 23.825 5 10 6 39 125 0.005 60° + Add 66953-06 CHMT4C06 MT4 31.267 6.5 6 4 46 155 0.005 60° + Add 66953-07 CHMT4C10 MT4 31.267 6.5 10 6 46 155 0.005 60° + Add 66953-08 CHMT4C14S MT4 31.267 6.5 14 3.7 46 155 0.005 60° + Add 66953-09 CHMT4C14 MT4 31.267 6.5 14 8 46 155 0.005 60° + Add 66953-10 CHMT5C14 MT5 44.399 6.5 14 8 64 200 0.005 60° + Add 66953-11 CHMT6C18 MT6 63.348 8 18 10 80 270 0.005 60° + Add
Page 31 of the GIN TECH catalogue (PDF )

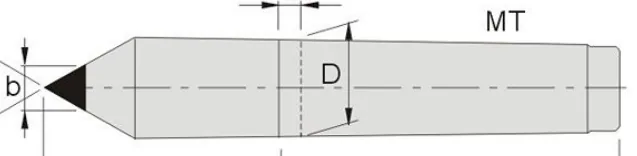

66954 Extension Solid Centers Of Carbide Tipped
Type CLMT Versions 7 Interface MT1, MT2, MT3 Price on request
GIN TECH 66954 Extension Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b L1 L Accuracy θ Add 66954-01 CLMT1C06 MT1 12.065 3.5 6 41 98 0.005 60° + Add 66954-02 CLMT2C08 MT2 17.780 5 8 49 118 0.005 60° + Add 66954-03 CLMT3C10 MT3 23.825 5 10 66 152 0.005 60° + Add 66954-04 CLMT4C10 MT4 31.267 6.5 10 87 196 0.005 60° + Add 66954-05 CLMT4C14 MT4 31.267 6.5 14 87 196 0.005 60° + Add 66954-06 CLMT5C18 MT5 44.399 6.5 18 94 230 0.005 60° + Add 66954-07 CLMT6C30 MT6 63.348 8 30 115 305 0.005 60° + Add
Page 32 of the GIN TECH catalogue (PDF )
66955 Extension Half-side Solid Centers Of Carbide Tipped

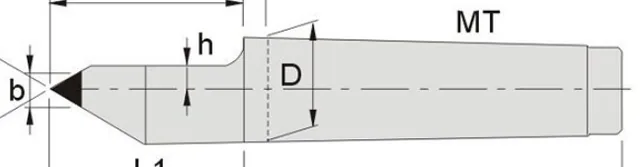

Type CRMT Versions 16 Interface MT1, MT2, MT3 Price on request
GIN TECH 66955 Extension Half-side Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b h L1 L2 L Accuracy θ Add 66955-01 CRMT1C06 MT1 12.065 3.5 6 4 41 41 98 0.005 60° + Add 66955-02 CRMT2C06S MT2 17.780 5 6 1.5 49 39 118 0.005 60° + Add 66955-03 CRMT2C06 MT2 17.780 5 6 4 49 39 118 0.005 60° + Add 66955-04 CRMT2C08 MT2 23.825 5 8 2.5 49 39 118 0.005 60° + Add 66955-05 CRMT3C06S MT3 23.825 5 6 1.5 49 38 152 0.005 60° + Add 66955-06 CRMT3C06 MT3 23.825 5 6 4 66 38 152 0.005 60° + Add 66955-07 CRMT3C08S MT3 23.825 5 8 2.5 49 38 152 0.005 60° + Add 66955-08 CRMT3C08 MT3 23.825 5 8 5 66 38 152 0.005 60° + Add 66955-09 CRMT3C10 MT3 23.825 5 10 4 49 38 152 0.005 60° + Add 66955-10 CRMT4C06 MT4 31.267 6.5 14 1.5 87 69 196 0.005 60° + Add 66955-11 CRMT4C08 MT4 31.267 6.5 14 2.5 87 69 196 0.005 60° + Add 66955-12 CRMT4C10 MT4 31.267 6.5 10 6 87 69 196 0.005 60° + Add 66955-13 CRMT4C14S MT4 31.267 6.5 14 3.7 87 69 196 0.005 60° + Add 66955-14 CRMT4C14 MT4 31.267 6.5 14 8 87 69 196 0.005 60° + Add 66955-15 CRMT5C14 MT5 44.399 6.5 14 8 94 79 230 0.005 60° + Add 66955-16 CRMT6C18 MT6 63.348 8 18 10 115 80 305 0.005 60° + Add

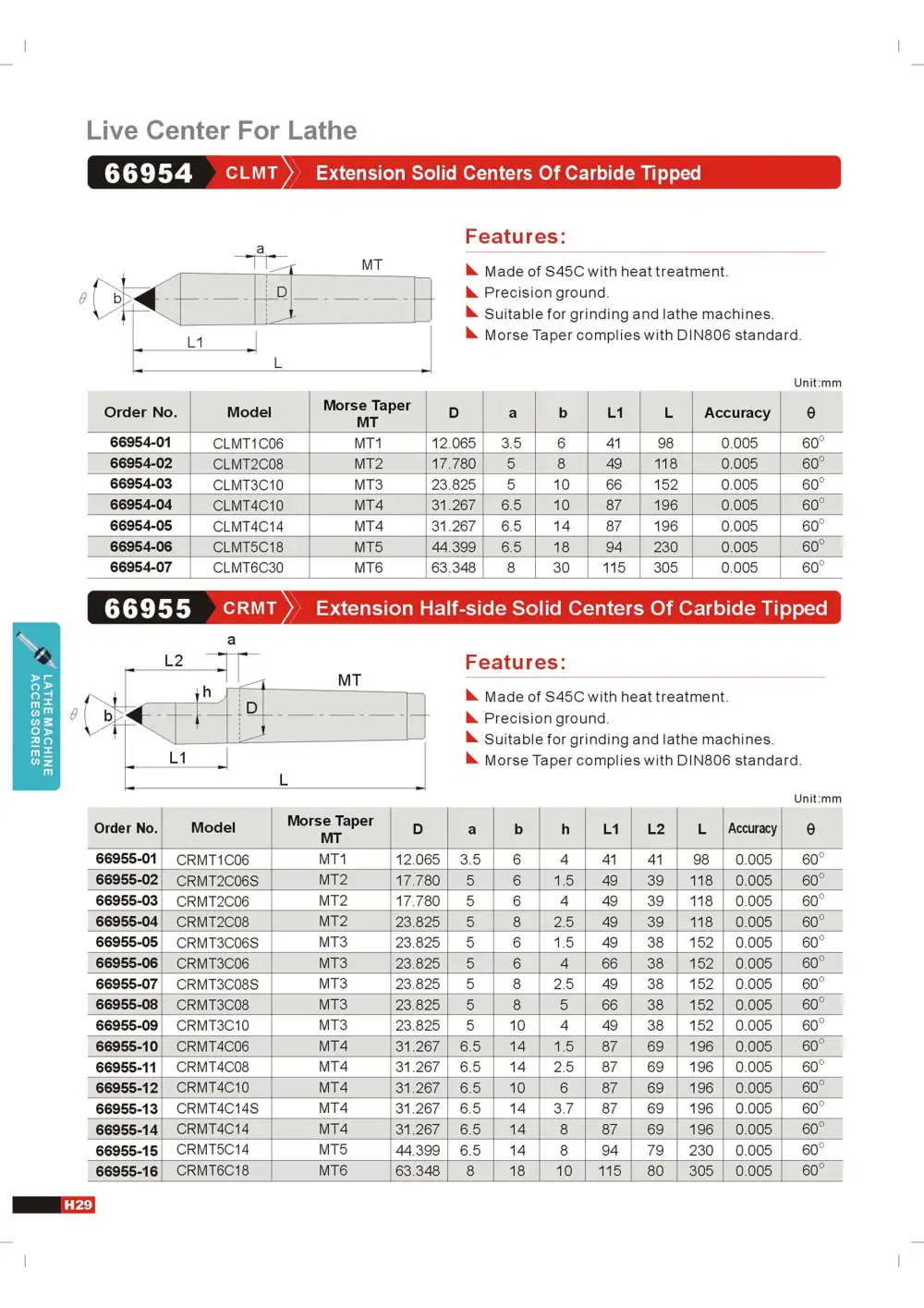

Page 32 of the GIN TECH catalogue (PDF )
66956 Extra-large Solid Centers Of Carbide Tipped
Type CAMT Versions 38 Interface MT1, MT2, MT3 Price on request
GIN TECH 66956 Extra-large Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D D1 a b L1 L Accuracy θ Add 66956-01 CAMT1C08 MT1 12.065 - 3.5 8 29 86 0.005 60° + Add 66956-02 CAMT1C10 MT1 12.065 - 3.5 10 29 86 0.005 60° + Add 66956-03 CAMT2C10 MT2 17.780 - 5 10 31 100 0.005 60° + Add 66956-04 CAMT2C12 MT2 17.780 - 5 12 31 100 0.005 60° + Add 66956-05 CAMT2C14 MT2 17.780 24 5 14 47 117 0.005 60° + Add 66956-06 CAMT2C18 MT2 17.780 28 5 18 51 120 0.005 60° + Add 66956-07 CAMT2C20 MT2 17.780 28 5 20 53 122 0.005 60° + Add 66956-08 CAMT2C30 MT2 17.780 31.6 5 31.6 52 122 0.005 60° + Add 66956-09 CAMT3C14 MT3 23.825 - 5 14 42 128 0.005 60° + Add 66956-10 CAMT3C14S MT3 23.825 - 5 14 67 155 0.005 60° + Add 66956-11 CAMT3C18 MT3 23.825 - 5 18 46 132 0.005 60° + Add 66956-12 CAMT3C18S MT3 23.825 - 5 18 73 159 0.005 60° + Add 66956-13 CAMT3C24S MT3 23.825 24.1 5 24.1 51 137 0.005 60° + Add 66956-14 CAMT3C24 MT3 23.825 35 5 24 68 154 0.005 60° + Add 66956-15 CAMT3C30 MT3 23.825 40 5 30 73 159 0.005 60° + Add 66956-16 CAMT4C18 MT4 31.267 - 6.5 18 49 158 0.005 60° + Add 66956-17 CAMT4C18S MT4 31.267 - 6.5 18 91 200 0.005 60° + Add 66956-18 CAMT4C20 MT4 31.267 - 6.5 20 91 200 0.005 60° + Add 66956-19 CAMT4C25 MT4 31.267 - 6.5 25 55 164 0.005 60° + Add 66956-20 CAMT4C25S MT4 31.267 - 6.5 25 97 206 0.005 60° + Add 66956-21 CAMT4C30 MT4 31.267 48 6.5 30 58 167 0.005 60° + Add 66956-22 CAMT4C30A MT4 31.267 48 6.5 30 72 181 0.005 60° + Add 66956-23 CAMT4C30B MT4 31.267 31.6 6.5 31.6 61 170 0.005 60° + Add 66956-24 CAMT4C30C MT4 31.267 31.6 6.5 31.6 101 210 0.005 60° + Add 66956-25 CAMT4C36 MT4 31.267 54 6.5 36 63 172 0.005 60° + Add 66956-26 CAMT4C36S MT4 31.267 54 6.5 36 77 186 0.005 60° + Add 66956-27 CAMT4C40 MT4 31.267 58 6.5 40 73 182 0.005 60° + Add 66956-28 CAMT4C40S MT4 31.267 58 6.5 40 81 190 0.005 60° + Add 66956-29 CAMT5C25 MT5 44.399 - 6.5 25 70 206 0.005 60° + Add 66956-30 CAMT5C30 MT5 44.399 - 6.5 30 74 210 0.005 60° + Add 66956-31 CAMT5C36 MT5 44.399 55 6.5 36 64 200 0.005 60° + Add 66956-32 CAMT5C36S MT5 44.399 55 6.5 36 101 237 0.005 60° + Add 66956-33 CAMT5C40 MT5 44.399 58 6.5 40 72 208 0.005 60° + Add 66956-34 CAMT5C40S MT5 44.399 58 6.5 40 104 240 0.005 60° + Add 66956-35 CAMT5C45 MT5 44.399 44.7 6.5 44.7 64 200 0.005 60° + Add 66956-36 CAMT5C45S MT5 44.399 44.7 6.5 44.7 94 230 0.005 60° + Add 66956-37 CAMT6C36 MT6 63.348 - 8 36 88 278 0.005 60° + Add 66956-38 CAMT6C40 MT6 63.348 - 8 40 88 278 0.005 60° + Add

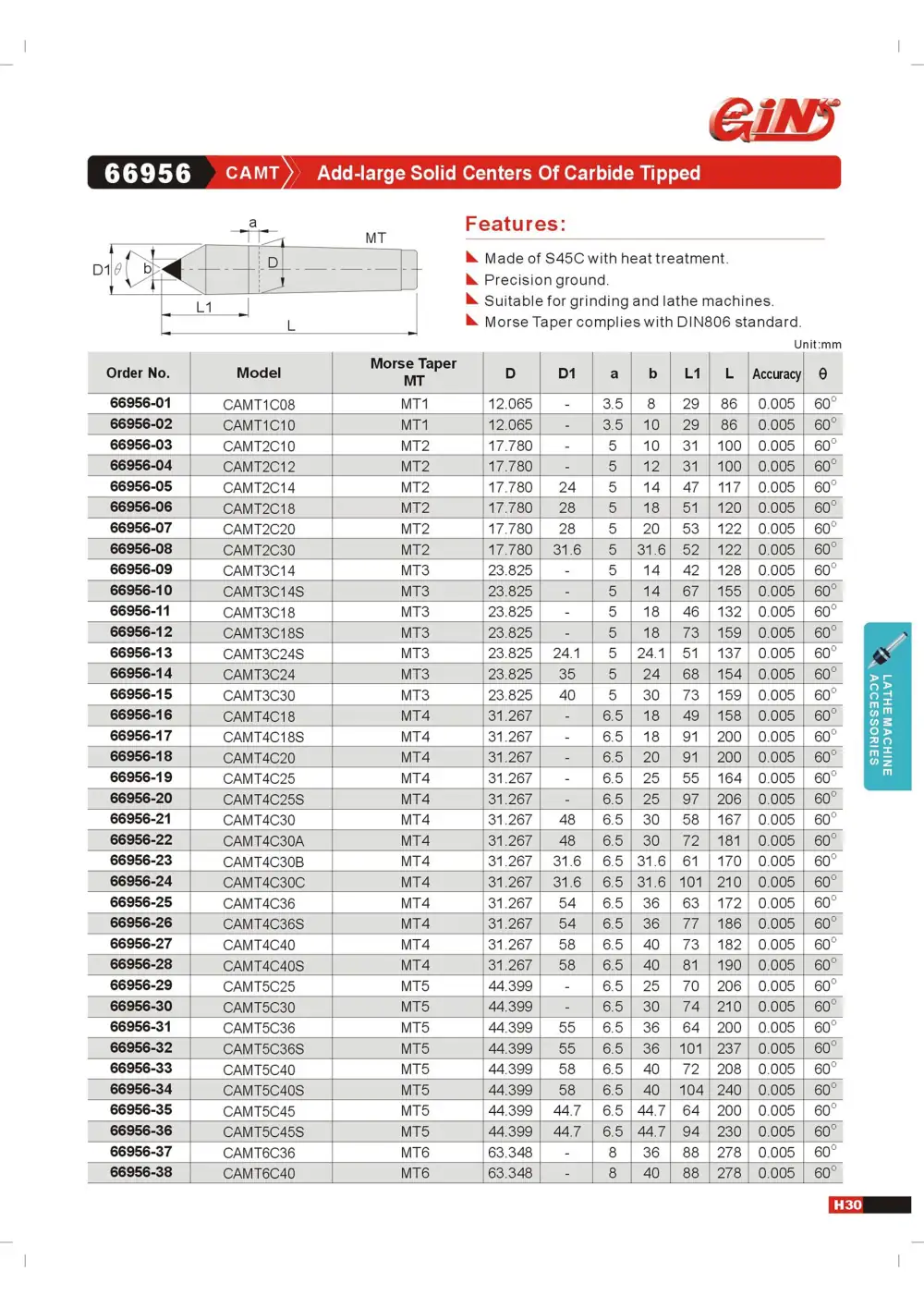

Page 33 of the GIN TECH catalogue (PDF )
66957 X-large Half-side Solid Centers Of Carbide Tipped
Type CVMT Versions 10 Interface MT1, MT2, MT3 Price on request

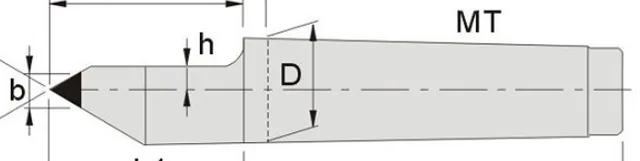

GIN TECH 66957 X-large Half-side Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b h L1 L2 L Accuracy θ Add 66957-01 CVMT1C08 MT1 12.065 3.5 8 2.5 28 30 85 0.005 60° + Add 66957-02 CVMT2C10 MT2 17.780 5 10 6 31 31 100 0.005 60° + Add 66957-03 CVMT3C14 MT3 23.825 5 14 8 42 42 128 0.005 60° + Add 66957-04 CVMT3C14S MT3 23.825 5 14 8 69 55 155 0.005 60° + Add 66957-05 CVMT3C18 MT3 23.825 5 18 10 46 46 132 0.005 60° + Add 66957-06 CVMT3C18S MT3 23.825 5 18 10 73 59 159 0.005 60° + Add 66957-07 CVMT4C18 MT4 31.267 6.5 18 10 49 49 158 0.005 60° + Add 66957-08 CVMT4C18S MT4 31.267 6.5 18 10 91 79 200 0.005 60° + Add 66957-09 CVMT4C25 MT4 31.267 6.5 25 13.5 55 55 164 0.005 60° + Add 66957-10 CVMT4C25S MT4 31.267 6.5 25 13.5 49 79 206 0.005 60° + Add

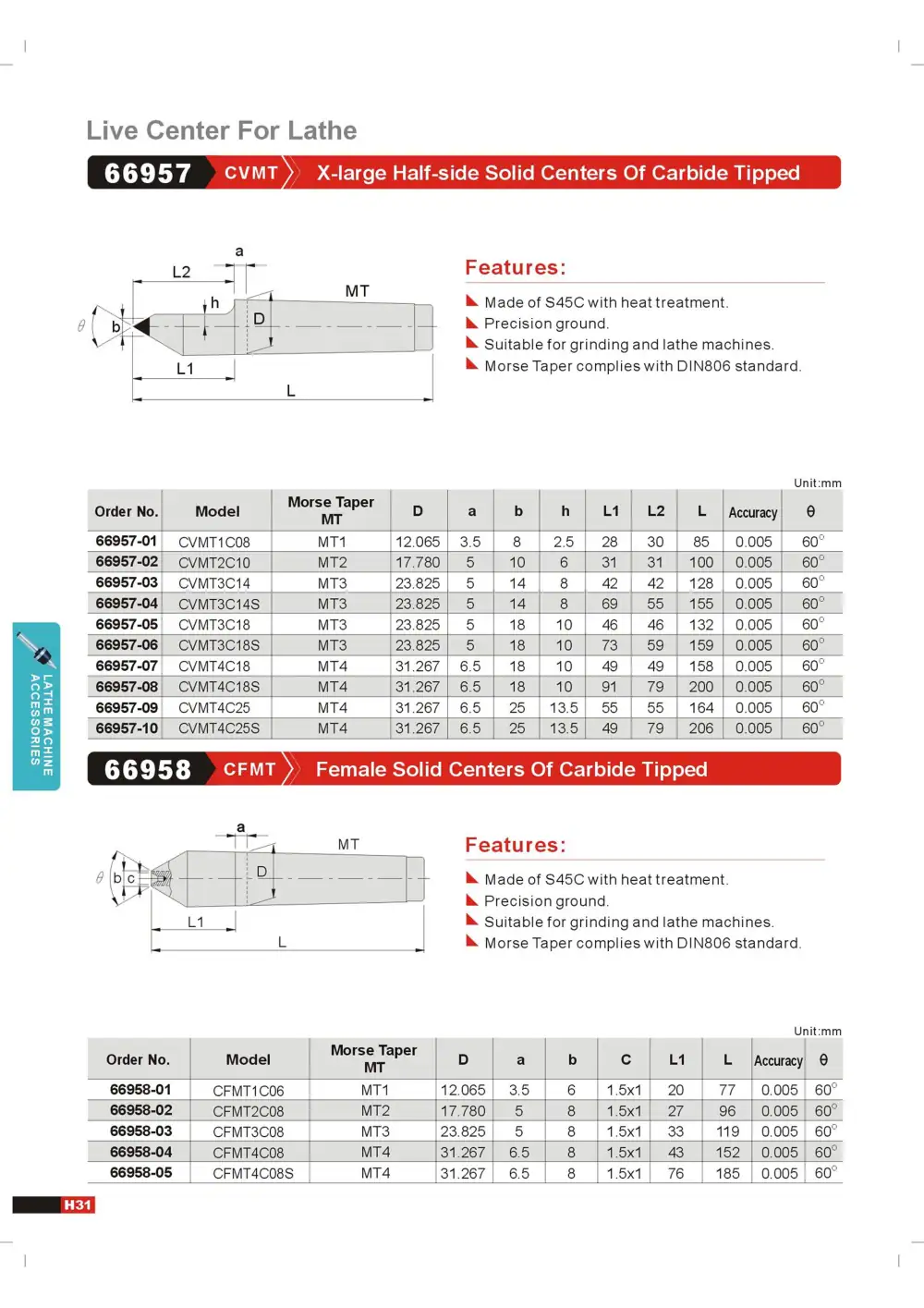

Page 34 of the GIN TECH catalogue (PDF )
66958 Female Solid Centers Of Carbide Tipped
Type CFMT Versions 5 Interface MT1, MT2, MT3 Price on request

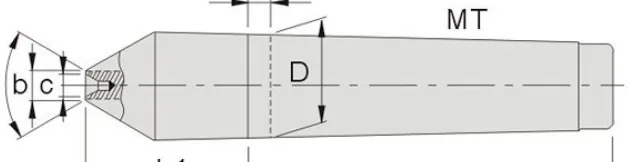

GIN TECH 66958 Female Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b C L1 L Accuracy θ Add 66958-01 CFMT1C06 MT1 12.065 3.5 6 1.5x1 20 77 0.005 60° + Add 66958-02 CFMT2C08 MT2 17.780 5 8 1.5x1 27 96 0.005 60° + Add 66958-03 CFMT3C08 MT3 23.825 5 8 1.5x1 33 119 0.005 60° + Add 66958-04 CFMT4C08 MT4 31.267 6.5 8 1.5x1 43 152 0.005 60° + Add 66958-05 CFMT4C08S MT4 31.267 6.5 8 1.5x1 76 185 0.005 60° + Add
Page 34 of the GIN TECH catalogue (PDF )
66959 Shell Solid Centers Of Carbide Tipped

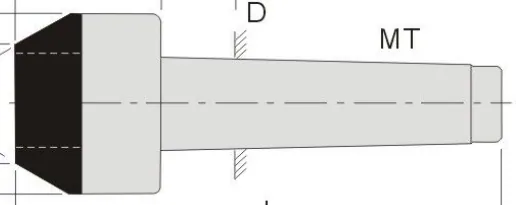

Type CSMT Versions 12 Interface MT3, MT4 Price on request
GIN TECH 66959 Shell Solid Centers Of Carbide TippedStandard: DIN806 Made of S45C with heat treatment. Precision ground. Suitable for grinding and lathe machines. Morse Taper complies with DIN806 standard. (dimensions in mm)
Order No. Model Morse Taper MT D a b C L1 L Accuracy θ Add 66959-01 CSMT3C35 MT3 23.825 5 35 16 54 140 0.005 60° + Add 66959-02 CSMT3C35S MT3 23.825 5 35 16 69 155 0.005 60° + Add 66959-03 CSMT3C40 MT3 23.825 5 40 20 54 140 0.005 60° + Add 66959-04 CSMT3C40S MT3 23.825 5 40 20 69 155 0.005 60° + Add 66959-05 CSMT3C50 MT3 23.825 5 50 30 54 140 0.005 60° + Add 66959-06 CSMT3C50S MT3 23.825 5 50 30 69 155 0.005 60° + Add 66959-07 CSMT4C35 MT4 31.267 6.5 35 16 51 160 0.005 60° + Add 66959-08 CSMT4C35S MT4 31.267 6.5 35 16 66 175 0.005 60° + Add 66959-09 CSMT4C40 MT4 31.267 6.5 40 20 51 160 0.005 60° + Add 66959-10 CSMT4C40S MT4 31.267 6.5 40 20 66 175 0.005 60° + Add 66959-11 CSMT4C50 MT4 31.267 6.5 50 30 51 160 0.005 60° + Add 66959-12 CSMT4C50S Mt4 31.267 6.5 50 30 66 175 0.005 60° + Add

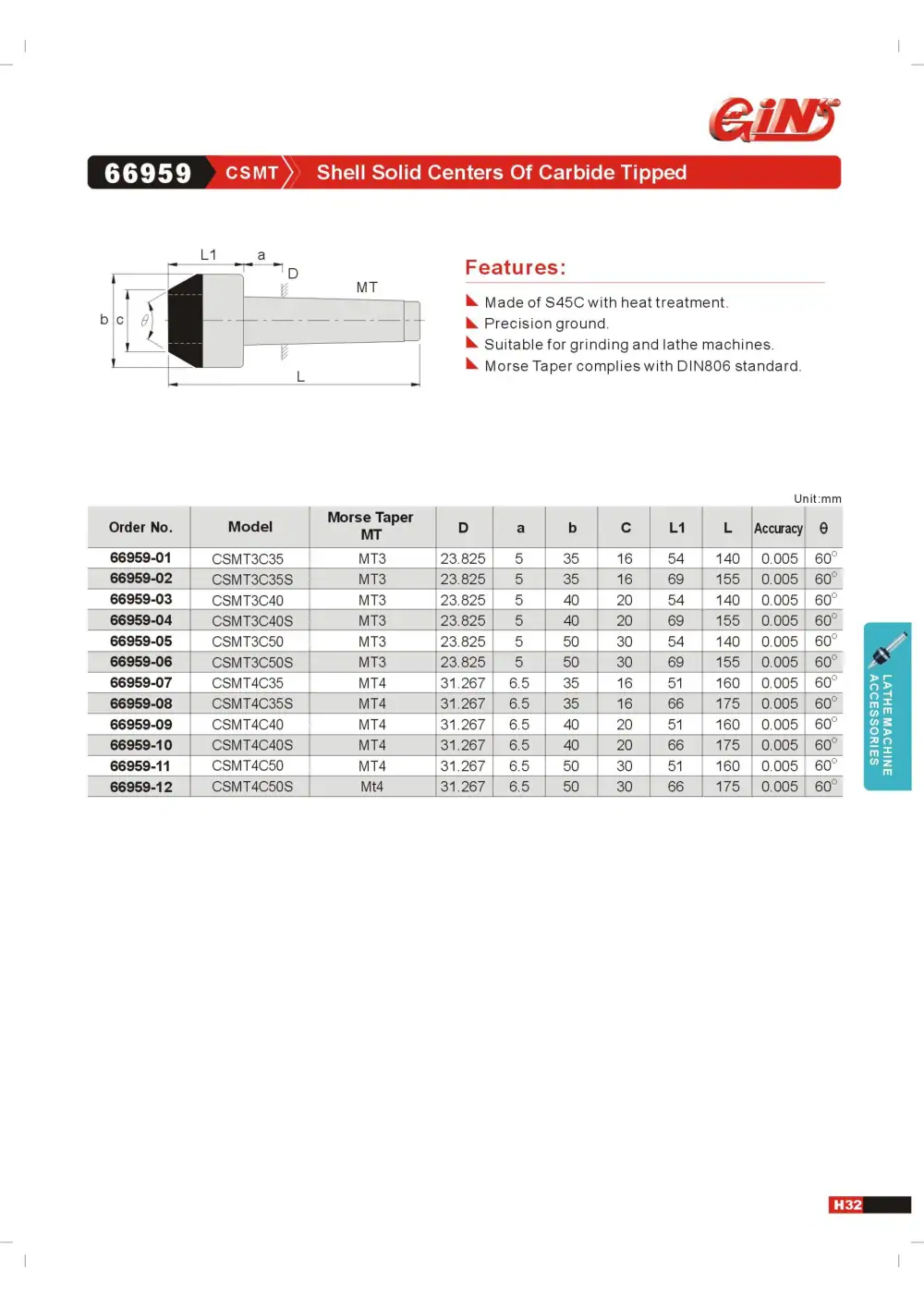

Page 35 of the GIN TECH catalogue (PDF )
No products match these parameters. Clear some filters or write to us and we will suggest a suitable one.
One inquiry for many products Add the products to the inquiry list and send them together.
Prices in euro, excluding VAT Where no price is published, we send an offer on request.
Reply to your inquiry We reply within 4 business days.
